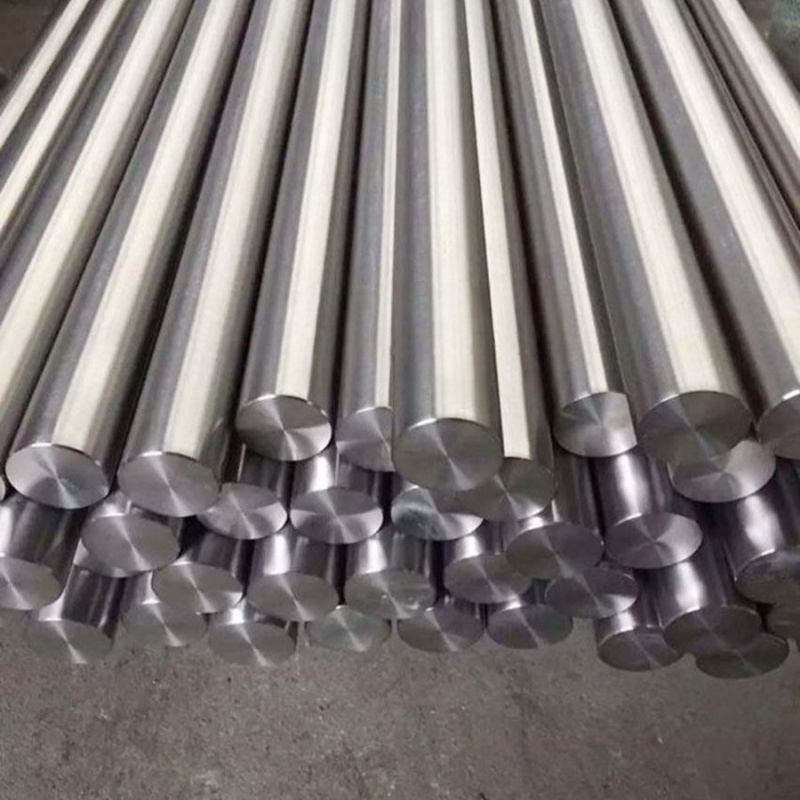

How to polished titanium, and what are the challenges and processes involved? As titanium and its alloys gain popularity in advanced engineering, medical, and consumer applications, achieving a flawless, polished titanium surface has become both an art and a science. The challenges of polished titanium stem from its unique metallographic characteristics—features that contribute to its renowned mechanical and chemical properties but also complicate its surface finishing. Over the past decades, researchers and engineers have developed specialized methods, such as three-step polishing technology, to overcome these obstacles. This article provides an in-depth introduction to the metallographic characteristics of titanium, explores the specific difficulties encountered during grinding and polishing, and reviews the evolution of titanium polishing technologies, with a particular focus on the influential three-step polishing methods pioneered by Springer, Ahmed, and Mǔler. We also compare manual and machine polishing, offering practical insights for both professionals and enthusiasts striving for the perfect polished titanium finish.
1. Introduction to the Metallographic Characteristics of Titanium
Titanium and its alloys have been at the forefront of high-performance engineering for more than fifty years. Their commercial application spans numerous industries, including aerospace, medical devices, automotive, sports equipment, and consumer goods. The reasons for this widespread adoption are clear: titanium possesses a unique combination of low density, exceptional strength-to-weight ratio, outstanding corrosion resistance, and high mechanical strength. These characteristics make it ideal for applications where both durability and weight savings are crucial.
However, these advantages come at a cost. The production of titanium and titanium alloys remains significantly more expensive than that of most other metals. The extraction, purification, and alloying processes require specialized equipment and strict atmospheric controls, contributing to higher manufacturing costs.
From a metallographic perspective, titanium exhibits a number of unique features. Like iron, titanium undergoes allotropic transformation—it exists in different crystallographic forms depending on temperature. At room temperature, pure titanium adopts a hexagonal close-packed (hcp) structure, known as the α (alpha) phase. When heated above approximately 882°C, it transforms into a body-centered cubic (bcc) structure, referred to as the β (beta) phase. Alloying elements can stabilize either the α or β phase, or create intermediate phases, yielding a wide array of titanium alloys with tailored properties.
At room temperature, commercial titanium and most titanium alloys exist as:
· α phase alloys: Predominantly α phase, offering excellent weldability and corrosion resistance.
· α+β phase alloys: Mixtures of both phases, balancing strength and ductility.
· β phase alloys: Predominantly β phase, often used for high-strength applications.
· Near-α and near-β alloys: Intermediate compositions with specialized properties.
The metallographic structure of titanium is thus highly dependent on its composition and thermal history. This structural diversity, while beneficial for application-specific properties, also introduces complexity in processes like grinding and polished titanium finishing.
2. The Challenges of Polished Titanium: Grinding and Polishing Difficulties
Polishing titanium and its alloys presents a unique set of challenges that go beyond those encountered with more conventional metals like steel. The preparation of metallographic samples for titanium is fundamentally more difficult and less efficient than for ferrous metals, largely due to the following factors:
2.1 Low Grinding and Polishing Efficiency
Titanium’s high hardness and strong chemical reactivity mean that abrasive particles tend to adhere to its surface, reducing the effectiveness of standard grinding and polishing media. The material’s low thermal conductivity also causes localized heating, which can lead to smearing or unwanted microstructural changes.
2.2 Microstructural Deformation and Twinning
One of the most significant challenges in polished titanium preparation is the tendency for deformation twinning to occur in the α phase during aggressive grinding or polishing. Twinning distorts the microstructure, making accurate metallographic analysis difficult or even impossible. Overly vigorous cutting or abrasive action introduces plastic deformation, which can mask or alter intrinsic features like grain boundaries and phase distributions.
2.3 Sample Mounting Issues
For pure titanium, cold mounting is preferred over hot-mounting techniques. Hot mounting—where samples are embedded in a resin under heat and pressure—can alter the hydrogen content and distribution in pure titanium, potentially affecting the microstructure and the results of subsequent analysis. Cold mounting, using epoxy or acrylic resins at room temperature, minimizes these issues and preserves the integrity of the sample.
2.4 Removal of Scratches and Plastic Flow
Due to titanium’s inherent ductility and strength, removing surface scratches and plastic deformation (plastic flow) during sample preparation is exceptionally challenging. Traditional polishing methods may not be sufficient to achieve a scratch-free, mirror-like surface, particularly for high-purity or fine-grained titanium alloys.
2.5 Sensitivity to Contamination
Titanium’s high affinity for oxygen, nitrogen, and hydrogen means that surface contamination is a persistent concern. Any exposure to air, moisture, or reactive chemicals during grinding or polishing can lead to the formation of oxide layers or hydrides, which alter surface appearance and properties.
3. The Development of Titanium Polishing Technologies
The quest for an efficient and reliable method to achieve polished titanium surfaces has evolved considerably over the past fifty years. In the 1970s and 1980s, mechanical polishing methods for titanium alloys largely relied on traditional, time-consuming techniques inherited from the field of steel metallurgy.
3.1 Early Mechanical Polishing Methods
Early approaches to polishing titanium involved multiple stages of mechanical abrasion, followed by polishing with suspensions that often contained aggressive chemical etchants. These processes were not only labor-intensive and slow but also prone to introducing artifacts such as smearing, pitting, or excessive etching.
3.2 Introduction of Chemical and Electrolytic Polishing
As the limitations of mechanical-only methods became apparent, researchers began to explore chemical and electrolytic polishing. Chemical polishing utilizes reactive solutions to selectively dissolve surface irregularities, while electrolytic polishing applies an electric current in a special electrolyte to smooth the surface. Both methods can create highly reflective finishes and reveal microstructural details, but they come with their own hazards—namely, the risks associated with handling corrosive and potentially dangerous chemicals. Electrolytic solutions often contain acids or mixtures that are hazardous to health and require specialized safety protocols.
3.3 Pioneering Research: Springer and Ahmed
A turning point in the field came in 1984, when Springer and Ahmed published their seminal research on polished titanium and titanium alloy metallography. Their work introduced a systematic, three-step polishing technology that remains influential today, providing a structured and reproducible approach to achieving high-quality polished titanium surfaces.
4. Springer and Ahmed’s Three-Step Polishing Technology
Springer and Ahmed’s methodology for polished titanium is celebrated for its systematic approach and reproducibility. The process is divided into three main steps—leveling (grinding), rough polishing, and final polishing.
4.1 Step One: Leveling (Grinding)
· Abrasive: 320 grit silicon carbide (SiC) sandpaper
· Cooling: Water-cooled to prevent overheating and deformation
· Duration: 2–3 minutes, or until the cut surface layer is fully removed and the sample surface is flat
· Settings: 240 RPM, co-rotational movement, applied pressure of 27 N (6 lbs) per sample
The primary goal is to remove the damage layer left by sectioning and to produce a uniformly flat surface. Water cooling minimizes heat buildup and prevents microstructural changes.
4.2 Step Two: Rough Polishing· Abrasive:
9 μm MetaDi diamond polishing compound
· Pad: TEXMET perforated polishing cloth
· Lubricant: Distilled water
· Duration: 10–15 minutes
· Settings: 120 RPM, counter-rotational movement, applied pressure of 27 N (6 lbs) per sample
Rough polishing uses diamond abrasives to remove scratches left by grinding and to further refine the surface. The combination of diamond paste and controlled parameters ensures efficient material removal without excessive deformation.
4.3 Step Three: Final Polishing
· Pad: MICROCLOTH or MASTERTEX polishing cloth
· Polishing Agent: MASTERMET colloidal silica suspension
· Duration: 10–15 minutes
· Settings: 120 RPM, counter-rotational movement, applied pressure of 27 N (6 lbs) per sample
The final polishing stage employs colloidal silica, a fine abrasive that enables the removal of the smallest scratches and the achievement of a mirror-like finish. The use of microcloth pads ensures uniform contact and minimal introduction of new surface defects.
5. Mǔler’s Three-Step Polishing Technology for Titanium Alloys
Building on earlier research, Mǔler introduced another influential three-step polishing process, which emphasizes precise control of abrasives, pressures, and chemical agents.
5.1 Step One: P500 Sandpaper Grinding
· Abrasive: P500 sandpaper (FEPA standard, equivalent to ANSI/CAMI 320/360 grit)
· Cooling: Water-cooled
· Speed: 300 RPM
· Pressure: 16.7 N (3.75 lbs) per sample
· Duration: Until sample is leveled
This step aims to quickly establish a flat, uniform surface while minimizing thermal and mechanical deformation.
5.2 Step Two: P1200 Sandpaper Grinding
· Abrasive: P1200 sandpaper (FEPA standard, equivalent to ANSI/CAMI 600 grit)
· Cooling: Water-cooled
· Speed: 300 RPM
· Pressure: 16.7 N (3.75 lbs) per sample
· Duration: 30 seconds
A finer abrasive is used for further refinement, preparing the sample for the final polishing stage.
5.3 Step Three: Synthetic Lint-Free Cloth and Colloidal Silica with Chemical Etchants
· Pad: Artificial, lint-free polishing cloth
· Polishing Agent: Colloidal silica suspension containing chemical etchants
· Solution Composition: 260 mL SiO₂ (colloidal silica), 40 mL H₂O₂ (30% concentration), 1 mL HNO₃, 0.5 mL HF
· Speed: 150 RPM
· Pressure and Time:
o 33 N (7.5 lbs) per sample for 10 minutes
o 16.7 N (3.75 lbs) for 2 minutes
o 8 N (2 lbs) for 1 minute
The addition of chemical agents promotes both mechanical and chemical polishing, enhancing the removal of surface irregularities and producing a uniform, high-gloss finish. The specific sequence of pressures and durations allows for gradual refinement and minimizes the risk of over-polishing or introducing new defects.
6. Manual Polishing vs. Machine Polishing
Both manual and machine polishing are widely used in metallographic laboratories and industry, each with its own advantages and limitations.
6.1 Manual Polishing: Art, Experience, and Patience
Manual polishing requires considerable experience and skill. Critical parameters such as applied force, duration, speed, and the choice of abrasives must be controlled by the operator. Mastery of these variables often comes only after years of practice. Beginners may struggle with under-polishing (leaving scratches or deformation) or over-polishing (removing too much material or introducing artifacts).
Manual polishing remains prevalent in many metallography labs, particularly in regions where automation is less accessible. Its main advantages are flexibility and cost-effectiveness for small batches or specialized samples. However, the quality of the polished titanium surface depends heavily on the operator’s patience and attention to detail. Repeated trial and error, careful observation, and diligent record-keeping are essential for success.
6.2 Machine Polishing: Consistency and Efficiency
Machine polishing automates most of the critical parameters. Once the settings for pressure, speed, rotation, and duration are established, the process can be repeated with high consistency across multiple samples. This makes machine polishing ideal for high-throughput environments or applications where precise reproducibility is essential.
Despite their differences, both manual and machine polishing share the same fundamental principles: progressive removal of material using successively finer abrasives, careful control of temperature and pressure, and meticulous cleaning between steps to prevent cross-contamination.
7. Practical Guidelines and Recommendations for Polished Titanium
Achieving an optimal polished titanium surface requires attention to detail at every stage:
· Sectioning: Use low-speed saws with ample coolant to minimize heat and deformation.
· Mounting: Prefer cold mounting resins for pure titanium; avoid hot mounting to prevent hydrogen embrittlement or microstructural changes.
· Grinding: Begin with coarser abrasives under controlled pressure and speed, always with adequate cooling.
· Polishing: Employ successively finer abrasives, finishing with colloidal silica or fine diamond suspensions. Use specialized polishing pads for uniform contact.
· Cleaning: Thoroughly clean samples between steps to avoid abrasive carryover and contamination.
· Inspection: Regularly examine samples under a microscope to assess progress and adjust parameters as needed.
Common Pitfalls
· Excessive Pressure or Speed: Can induce deformation twinning, surface smearing, or overheating.
· Insufficient Cleaning: Leads to cross-contamination, scratching, or staining.
· Inadequate Lubrication: Causes surface heating, abrasive embedding, or incomplete material removal.
· Over-polishing: Can round off features of interest, such as grain boundaries or phase interfaces.
8. The Future of Polished Titanium Technologies
As demand for titanium components continues to grow in critical industries—from aerospace to biomedical devices—the pursuit of more efficient and reliable polished titanium techniques remains a vibrant area of research. Innovations such as automated polishing systems, advanced abrasive materials, and safer chemical or electrochemical polishing solutions are enhancing both the quality and safety of titanium finishing processes.
Emerging technologies, such as ion-beam polishing and laser surface modification, offer possibilities for achieving ultra-smooth, defect-free surfaces even on complex geometries. As these methods mature and become more accessible, the standards for polished titanium in high-precision applications will continue to rise.
Conclusion
Polishing titanium is a complex process, shaped by the material’s unique metallographic characteristics and the high standards demanded by modern engineering. The challenges of polished titanium arise from its high strength, ductility, chemical reactivity, and sensitivity to microstructural changes. Through systematic approaches like the three-step polishing technologies of Springer, Ahmed, and Mǔler, it is possible to overcome these obstacles and produce mirror-like, analytically reliable surfaces on even the most demanding titanium alloys.
Whether by hand or machine, successful polished titanium finishing requires patience, precision, and a thorough understanding of both the science and the art of metallography. As technology advances, the future promises even greater efficiency, safety, and quality in the world of polished titanium.
Frequently Asked Questions and Answers
1. What are the key difficulties and challenges in polishing titanium, and what underlying factors contribute to these issues?
The main challenges in polishing titanium stem from its high hardness, ductility, and strong chemical reactivity. Abrasive particles can become embedded or adhere to the surface, reducing polishing efficiency. Aggressive mechanical action can induce deformation twinning in the α phase, distorting the microstructure and interfering with microscopic analysis. Titanium’s low thermal conductivity also leads to localized heating, which can cause smearing or microstructural alteration. In addition, titanium’s affinity for oxygen, nitrogen, and hydrogen makes it prone to surface contamination during preparation.
2. How do titanium’s unique properties (such as high hardness, low thermal conductivity, or surface reactivity) create obstacles for achieving a uniform, high-gloss polish?
Titanium's high hardness makes it more resistant to abrasion, requiring harder or more aggressive polishing media. Its low thermal conductivity means that heat generated during polishing is not dissipated quickly, increasing the risk of thermal damage, smearing, or microstructural changes. Its surface reactivity can lead to rapid formation of oxide layers or absorption of gases, which can interfere with the achievement of a clean, uniform polish. These factors necessitate the use of controlled, stepwise polishing procedures and appropriate cooling and cleaning protocols.
3. Can polished titanium surfaces be further enhanced for specialized applications?
Absolutely. Post-polishing treatments such as anodization, laser texturing, or thin film coatings can impart additional functionalities, such as improved wear resistance, tailored optical properties, or enhanced biocompatibility. These treatments can be used to further customize titanium surfaces for medical implants, aerospace components, or decorative products.
