Titanium forging enables large components that combine high strength-to-weight ratios (up to ~900–1,100 MPa tensile strength in common Ti alloys) with good corrosion resistance in chlorides, seawater, and acidic environments. As a non-magnetic material with good welding performance, forged titanium suits aerospace landing gear, marine shafts, energy rotors, biomedical frames, and chemical vessels where magnetic neutrality and clean joints matter. The forging process refines grains, enhances fatigue life by 20–40%, and improves fracture toughness versus cast forms, while minimizing porosity and segregation in thick sections (>100 mm). Beyond structural merits, titanium’s unique functional attributes—Superconductivity in select low-temperature phases, hydrogen storage potential in Ti-based hydrides, and shape-memory behavior in Ti–Ni systems—extend its value into cryogenics, energy, and smart actuators. For oversized parts, near-net-shape forging reduces buy-to-fly ratios by 30–60%, cutting scrap and machining time. Thermal-mechanical control across billet conditioning, die design, and controlled cooling yields uniform microstructures and stable properties across meters-long geometries. In harsh service, forged titanium resists stress corrosion cracking and galvanic attack, maintaining dimensional stability and performance over long lifecycles, while offering lifecycle cost advantages despite higher material price.
1. Forging technology advantages for titanium alloys
In titanium hot working, heating temperature is critical. At lower temperatures, flow stress increases and the risk of cracking rises; strain rate sensitivity is high, so deformation speed must be controlled. During precision hot-die forging, heating the dies to the same or higher temperature than the workpiece suppresses in-process temperature drops, stabilizing flow and minimizing surface chilling. The overarching principle is simple: within the correct α, α+β, or β field, controlled deformation and cooling deliver a targeted microstructure for the application.
1.1 Forging technology for engine disks
Aerospace engine disks demand high fatigue strength and fracture toughness. For service near 700 K, alloys like Ti-6Al-2Sn-4Zr-6Mo (Ti-6246) are widely used. Traditional α+β forging yields a microstructure of β phase with equiaxed α grains and fine acicular α, but the fracture toughness can be limited for the most demanding duty cycles. To address this, β-forging was developed.
· Conventional α+β forging:
o Processing below the β-transus.
o Mixed equiaxed and lamellar morphologies; acceptable strength but constrained toughness in some regimes.
· β-forging concept:
o Heating above the β-transus to forge in the single-β field, followed by controlled cooling to create refined lamellar (acicular) α through recrystallization pathways.
o Outcome: improved fracture toughness and fatigue crack growth resistance, particularly important for large-diameter disks experiencing combined centrifugal and thermal stresses.
1.2 Fundamentals and controls in β-forging
β-forging is performed above the β transformation temperature, with substantial plastic deformation to trigger full recrystallization in the β field. Because the microstructure forms during cooling from β, the forging temperature and total strain are decisive, and interruptions (reheating mid-forge with no deformation) are not allowed—they induce nonuniform lamellae and property scatter.
· For Ti-6Al-2Sn-4Zr-6Mo:
o Typical working temperature window: ~1073–1323 K (above β-transus for the alloy chemistry).
o Sufficient deformation magnitude is required to ensure complete recrystallization and lamellar α formation after cooling.
o Result: a fully acicular (needle-like) microstructure with enhanced fracture toughness and better crack path tortuosity, balancing high strength with damage tolerance.
1.3 Turbine blade forging technology
Turbine blades are thin-section components with rapid heat loss during forging. Temperature control and die design are therefore critical.
· Process innovations:
o Precisely heated dies to reduce temperature gradients and avoid surface chill cracks.
o Sequenced forming: initial plane (flat) forging to distribute material, followed by bending to introduce aeroform curvature, and final precision forging to lock in the airfoil and root geometry.
o Efficient use of upper and lower strike energy improves feature fidelity and reduces local thinning, benefiting fatigue life.
1.4 Ring manufacturing technology
Large rings for fan cases and compressor cases in Aerospace often use Ti-6Al-4V (Ti-64) via ring rolling. Because titanium is relatively costly, material utilization drives economics.
· Near-net-shape (NNS) strategy:
o By designing preforms and rolling schedules to approach final dimensions, material buy-to-fly can be reduced by >55%, lowering scrap and machining time.
· Thick ring considerations:
o Apply sufficient radial and axial reduction to avoid cracking; monitor temperature and deformation to maintain homogeneous microstructure across the wall.
o Control cooling to prevent residual stress and distorted roundness.
Overall, producing high-quality titanium forgings requires staying within the correct processing temperatures and applying appropriate deformation. This leverages the inherent properties of titanium alloys—achieving uniform, fine lamellar or bimodal microstructures with low defect populations. In production, tight control of forging temperature and plastic strain is non-negotiable.
2. Selected applications of titanium alloy forgings
2.1 Aerospace, military industry, marine development and petrochemical industry: airframes, engines, and space systems
Roughly half of global titanium production serves Aerospace. Military aircraft can contain ~30% titanium by structural weight in specific platforms, while commercial airliners continue to increase titanium content. Boeing’s 787 reportedly exceeds 15% titanium by weight in the airframe and engine system elements. Ti-6Al-4V stands out as the workhorse for airframe structures due to the combination of strength, corrosion resistance, non-magnetic nature, and good welding performance.

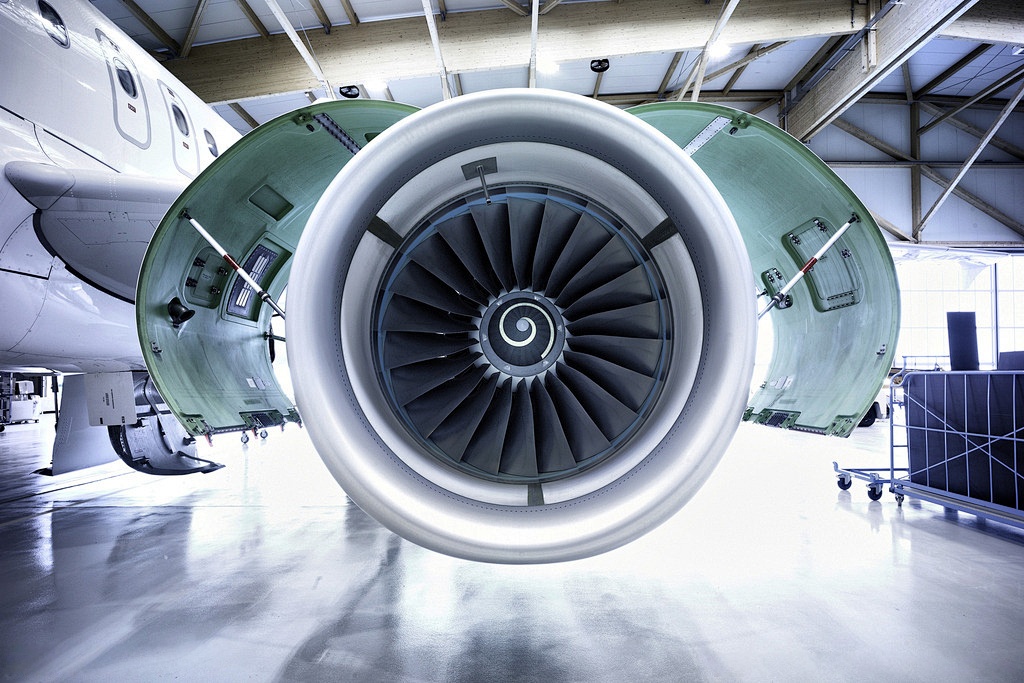

· Aerospace engine systems:
o Forged disks (Ti-6246, Ti-64, Ti-6-2-4-2) for high specific strength and fatigue resistance.
o Compressor and fan rings via ring rolling for stiffness and containment with reduced mass.
o Blades and blisks where thin-section forging and subsequent superplastic forming/diffusion bonding may be combined for advanced geometries.
· Space propulsion:
o Forged tanks, turbopump impellers, and inlet sections where cavitation resistance, low density, and weldability matter; cleanliness and low inclusion content are essential for reliability in cryogenic or reactive propellants.
In the military industry, titanium forgings are pervasive in landing gear, hardpoints, and armor adjuncts where weight savings translate directly into range and payload. In marine development and petrochemical industry equipment, forged titanium shafts, valves, and heat-exchanger components exploit good corrosion resistance in chlorides, seawater, sour service, and mixed chemical streams, while remaining non-magnetic for sensitive instrumentation.
2.2 Power generation: forged steam turbine blades
Increasing steam turbine efficiency often involves longer last-stage blades. Longer blades increase rotor loading, so mass reduction is essential to keep stresses within limits.
· Titanium solution:
o One-meter-class Ti-6Al-4V forged blades at the low-pressure exhaust end reduce centrifugal loads while offering excellent corrosion resistance in wet steam.
o Forging refines grains and reduces porosity compared with cast blades, yielding improved high-cycle fatigue performance and resistance to stress corrosion cracking.
Advantages of titanium forging for large components
· Structural performance
o High strength-to-weight with stable properties across thick sections.
o Superior fatigue and fracture toughness vs. castings due to refined, defect-lean microstructures.
· Corrosion and environment
o Outstanding resistance to seawater, chlorides, and many petrochemical environments; reduced maintenance and lifecycle cost.
· Magnetic neutrality and weldability
o Non-magnetic for sensitive equipment; good welding performance enables modular construction and repair strategies.
· Process-driven microstructure control
o β-forging and controlled cooling tailor lamellar vs. bimodal structures to specific fatigue/toughness targets.
· Dimensional and economic efficiency
o Near-net-shape forging, ring rolling, and precise die design cut buy-to-fly ratios, machining hours, and scrap by double-digit percentages.
· Reliability and inspection
o Forgings accommodate rigorous NDE (UT, RT, dye-penetrant), and their predictable grain flow supports damage tolerance models required in Aerospace and offshore codes.
Process control essentials
· Temperature management
o Preheat dies to near workpiece temperature; avoid excessive temperature drop in thin sections.
o Obey α/β/β-transus maps for each alloy; maintain 1073–1323 K windows for β-forging of alloys like Ti-6246.
· Deformation strategy
o Ensure sufficient total strain in β-forging to trigger full recrystallization; avoid reheating without deformation.
o Sequence operations (flat → bend → precision) for thin parts like blades.
· Atmosphere and surface
o Minimize oxygen pickup and alpha-case via protective atmospheres, glass lubricants, or coatings; machine off any alpha-case post-forge.
· Post-forge heat treatment
o Tailored anneals or solution/aging cycles to stabilize properties, reduce residual stress, and lock in target toughness.
Extended functional relevance
While structural components dominate, titanium’s broader functional profile adds value:
· Superconductivity investigations in specific intermetallic or low-temperature phases extend titanium-based systems into cryogenic magnetics research.
· Hydrogen storage in Ti-based hydrides offers energy buffering possibilities when coupled with robust, corrosion-resistant containment structures.
· Shape-memory and superelastic behavior in Ti-Ni systems provide actuation and damping for smart aerospace and marine systems, with forged preforms enabling durable, net-shaped parts.
Frequently Asked Questions and Answers
Q1: What mechanical advantages does titanium forging offer over casting or additive manufacturing when producing large-scale components like aerospace engine casings or marine propeller shafts?
A1: Forging delivers refined, continuous grain flow, minimal porosity, and uniform microstructures across thick sections, translating to higher fatigue strength and fracture toughness than castings. Compared with many AM routes for large parts, forgings avoid build defects (lack of fusion, keyholing) and anisotropy, and they achieve better through-thickness properties and reliability under multiaxial loads.
Q2: How does titanium forging enhance the structural integrity and long-term reliability of large components compared to other manufacturing methods, particularly in high-stress applications like heavy machinery or offshore platforms?
A2: Controlled β- or α+β-forging plus tailored heat treatment creates microstructures that resist crack initiation and slow crack growth. Reduced inclusion and pore content minimize stress concentrators, while corrosion resistance preserves surface integrity in chloride and sour environments, lowering the risk of stress corrosion cracking and extending inspection intervals.
Q3: What advantages does titanium forging provide in terms of material utilization and post-processing efficiency when producing large components, and how do these factors impact overall production costs?
A3: Near-net-shape preforms, ring rolling, and precise die systems can reduce buy-to-fly by >55% for rings and large shells, cutting raw material cost and machining hours. Better dimensional stability reduces rework, while good welding performance supports modular fabrication and repair. The combined savings offset higher alloy prices, improving total cost of ownership for large, mission-critical hardware.
