Titanium tube alloys offer a compelling mix of low density and high strength that aligns perfectly with modern automotive demands for safety, comfort, fuel economy, and lower emissions. With a density roughly 60% that of steel and strengths exceeding 800 MPa, titanium alloys maintain reliable mechanical performance around 500°C, while offering excellent weldability and formability. More than two decades ago, motorsport adopted titanium extensively to reduce engine mass and improve power response; today, the same titanium tube and alloy technologies are migrating into mass market applications.

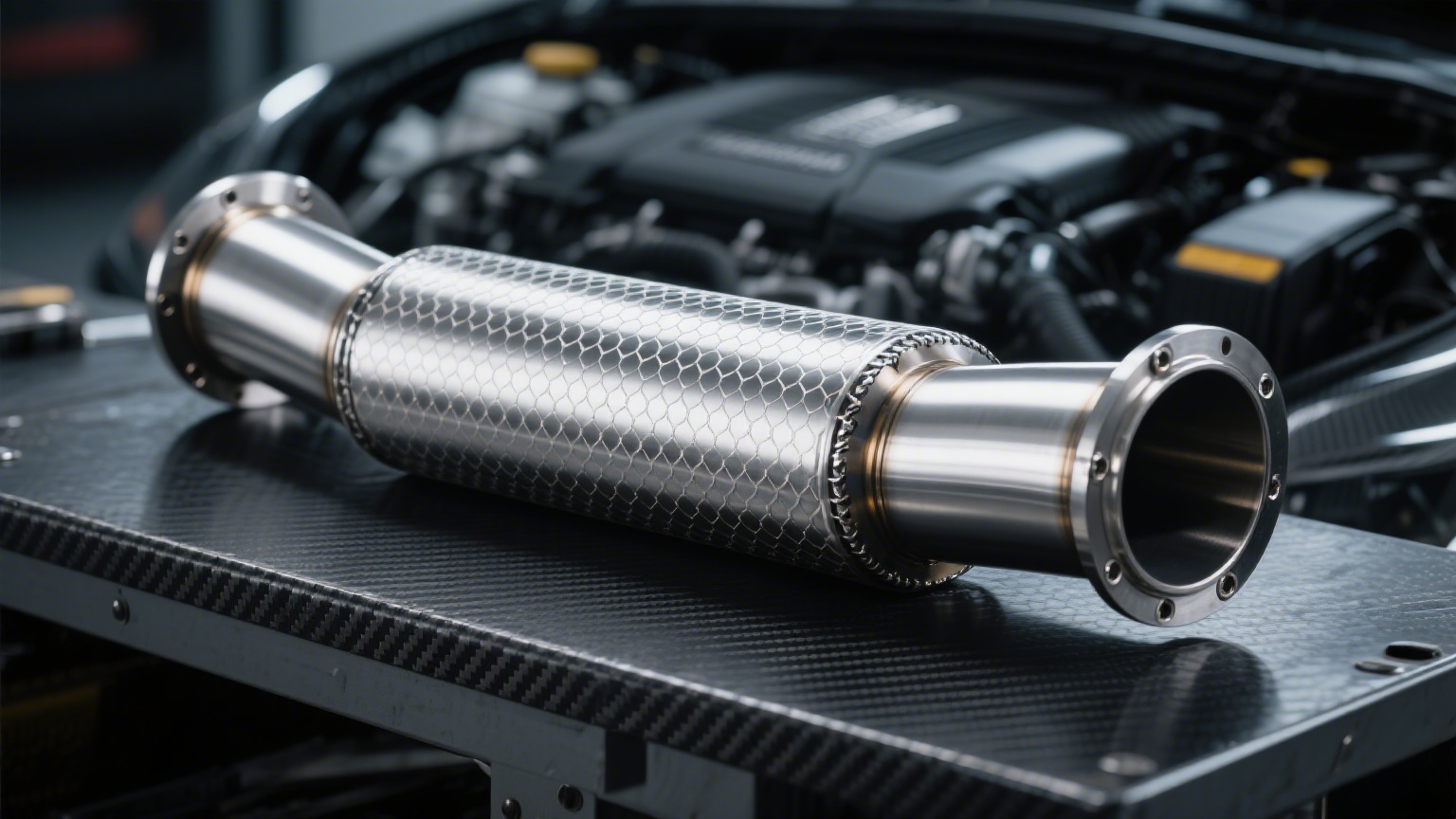

1. Automotive Exhaust Systems:
High Temperature Strength and Corrosion Resistance Exhaust systems require materials with:
Robust high-temperature mechanical properties.
Resistance to sulfur (S) and chlorine (Cl) induced corrosion.
Durable welds that resist pitting and weld-seam rust common in stainless steel exhausts.
Using titanium tube and sheet in headers, downpipes, mid-pipes, and mufflers:
Minimizes pitting corrosion and weld seam oxidation seen in many stainless systems.
Cuts mass substantially, reducing exhaust inertia and thermal mass, which can improve turbo spool, throttle response, and acceleration.
Helps maintain cleaner internal surfaces, supporting more complete combustion, improved acceleration, and even shorter braking distances through overall vehicle mass reduction.
Endures cyclic thermal loads with less creep and oxidation, sustaining acoustic and back-pressure performance over the life of the vehicle.
2. Engine System:
Titanium’s Highest-Value Use Case
The engine is the largest consumer of titanium alloys in vehicles, with critical rotating and reciprocating parts benefiting from mass reduction and fatigue strength.
2.1 Valves
Intake valves commonly use Ti-6Al-4V.
Exhaust valves often use Ti-6Al-2Sn-4Zr-2Mo.
These alloys provide excellent high temperature strength, oxidation resistance, and creep resistance. Reduced valve mass enables higher engine speeds, improved valve-train stability, and better acceleration.
2.2 Valve Seats
· Typically Ti-6Al-4V or Ti-5Al-2Cr-1Fe.
· Simple geometry eases machining requirements; no special surface treatment is usually necessary.
· Delivers meaningful weight savings at relatively modest cost, aiding engine-bay packaging and thermal management.
2.3 Connecting Rods
· Predominantly Ti-6Al-4V for a balance of strength, fatigue resistance, and corrosion resistance.
· Lower reciprocating mass enhances throttle response and durability, especially valuable for rapid acceleration/deceleration duty cycles.
2.4 Crankshafts
· Titanium crankshafts can markedly reduce rotational mass and have demonstrated increases in achievable engine speed on the order of 700 r/min, verifying the performance advantages of titanium in powertrains.
3. Vibration Reduction and Suspension Systems
The core of an automotive damping/suspension system is the spring. Compared to spring steels, titanium alloys offer:
· Higher specific strength and lower shear modulus.
· Superior fatigue strength under high cycle loading.
Implications for titanium suspension springs:
· For a given spring rate, titanium’s lower shear modulus and higher strength allow fewer coils, reducing spring mass and saving packaging space.
· Higher natural (resonant) frequencies mitigate resonance issues, enhancing ride quality and durability.
· Improved corrosion resistance extends service life, especially in salt and chemical exposure.
Titanium tube can also be used to fabricate lightweight anti roll bars, damper bodies, and subframe braces that contribute to vibration reduction and chassis rigidity with minimal weight.
4. Body and Chassis Fasteners
· Wheel bolts/studs, lug nuts, brake caliper bolts, suspension knuckles and control-arm fasteners, and underbody panel fasteners benefit from titanium’s high strength-to-weight ratio and corrosion resistance.
· Reduced unsprung and rotating mass improves steering feel, acceleration, and braking response.
· Titanium fasteners resist seizing and galvanic corrosion when properly specified with compatible coatings and assembly practices.
5. Significance of Titanium Alloys for Automotive Lightweighting
Lightweighting delivers direct fuel-economy and performance dividends:
· A 10% reduction in curb mass can reduce fuel consumption by approximately 6–8%.
· Studies indicate that for every 91 kg of mass removed, vehicles can travel about 0.43 km farther per liter of fuel.
By leveraging titanium tube and alloy components throughout exhaust, engine, suspension, and fastening systems:
· Vehicles achieve lower curb mass, improved safety margins (via better braking and handling), and enhanced comfort (through reduced vibration and better damping).
· Titanium’s corrosion resistance reduces maintenance and extends component lifespan, improving total cost of ownership.
· The net effect is improved efficiency, performance, and environmental outcomes without compromising durability.
From motorsport to mainstream, titanium tube alloy materials are transforming the design of exhausts, engines, suspension systems, and structural fasteners. Their unique combination of low density, high strength, high-temperature capability, weldability, and corrosion resistance directly addresses modern automotive targets for safety, comfort, and fuel efficiency. As costs continue to decline through improved processing and supply chains, titanium’s footprint in automotive engineering will keep expanding.
Frequently Asked Questions and Answers
Q1: Which car parts can be manufactured with titanium tube and titanium alloys?
A1:Exhaust components: headers, downpipes, mid-pipes, mufflers, and tailpipes made from titanium tube.
Engine parts: intake and exhaust valves (Ti-6Al-4V, Ti-6Al-2Sn-4Zr-2Mo), valve seats (Ti-6Al-4V, Ti-5Al-2Cr-1Fe), connecting rods (Ti-6Al-4V), and crankshafts.
Suspension and vibration reduction: coil springs, damper bodies, anti-roll bars, strut braces, and subframe braces using titanium tube.
Body and chassis fasteners: wheel studs and nuts, brake and suspension bolts, and underbody fasteners.
Q2: What are the key benefits of using titanium alloys for automotive components?
A2:Lightweight with high strength: density ~60% of steel while achieving >800 MPa strength; significant reductions in curb, rotating, and unsprung mass.
High-temperature performance: retains mechanical properties around 500°C, ideal for exhausts and engine components.
Corrosion resistance: strong resistance to S/Cl environments and road salts; fewer issues with pitting and weld seam corrosion than many stainless steels.
Fatigue and durability: excellent high-cycle fatigue strength improves reliability in springs and rotating parts.
Manufacturability: good weldability and formability enable complex tubing and thin-wall structures.
Efficiency and performance: improved acceleration, handling, braking, and fuel economy; every 91 kg reduction can extend range by about 0.43 km per liter.
Q3: Are there any considerations or challenges when adopting titanium tube components?
A3:Cost: higher material and processing cost than steel or aluminum, though lifecycle savings can offset initial expense.
Joining and handling: requires clean welding environments and inert shielding; attention to galling and galvanic compatibility in fasteners.
Supply chain and design: components benefit from purpose designed geometries (e.g., thin-wall titanium tube) to fully realize weight savings.
Q4: How do titanium tube exhausts affect vehicle performance and comfort?
A4:Lower mass reduces rear-end inertia, aiding handling and acceleration.
Better thermal behavior can support combustion efficiency and turbo response.
Superior corrosion resistance maintains exhaust integrity and sound quality over time.
Overall mass reduction contributes to shorter braking distances and improved ride due to reduced unsprung mass.
Q5: Why are titanium springs advantageous in vibration reduction systems?
A5:Higher specific strength and lower shear modulus allow fewer coils for the same spring rate, cutting weight and saving space.
Higher resonant frequency enhances ride quality and reduces resonance issues.
Excellent fatigue and corrosion resistance extend service life, especially in harsh environments.
