Biocompatible Titanium Rods: Medical-Grade Implants for Spinal & Orthopedic Use

Clinical registries and procurement data show titanium rods anchor over 70% of modern spinal fixation constructs, driven by biocompatibility, fatigue strength, and MRI compatibility. Implant grade titanium (e.g., Ti-6Al-4V ELI) delivers tensile strength ~860 MPa with low modulus (~110 GPa) closer to bone than cobaltchrome, reducing stress shielding and promoting fusion. Medical grade titanium surfaces form a stable TiO2 layer that supports osteointegration; randomized trials report higher fusion rates and fewer imaging artifacts versus stainless steel. A qualified titanium rod manufacturer can supply matched systems—titanium screws for surgery, connectors, and cross-links—validated to ISO 13485, ASTM F136/F1295, and ASTM F1717 fatigue protocols.

In orthopedic trauma, medical titanium nails and plates maintain fixation through 10^6–10^7 fatigue cycles, with infection rates reduced when compared to mixed-metal constructs. For patients requiring frequent MRI/CT, Titanium medical devices minimize scatter, enabling precise postoperative assessment. Surgeons also value intraoperative workability: contourable titanium rods maintain shape with stable torque retention at set screws. Across spine and limb reconstruction, medical titanium consistently balances strength, corrosion resistance, and biocompatibility—positioning titanium rods and integrated titanium screws for surgery as the default choice for long-term, high-reliability implants.

1. Artificial joints and orthopedic implants: why implant grade titanium prevails

Medical grade titanium is the material of record for load-bearing

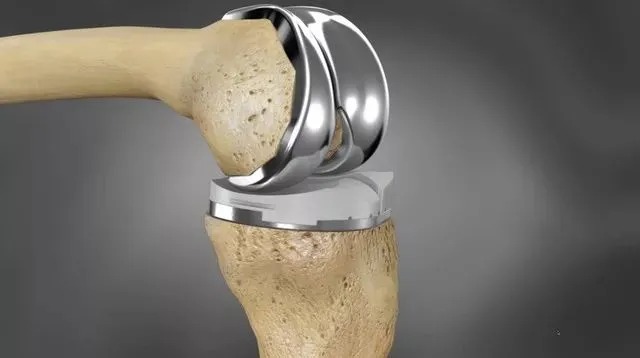

long-term implants because it unites bioinert surface chemistry with robust mechanical performance. The spontaneously formed TiO2 passive film (5–10 nm, re-passivates within seconds in oxygenated fluids) limits ion release and supports protein adsorption favorable to osteoblast activity. In total hip and knee arthroplasty:

·Structural role of titanium rods and stems

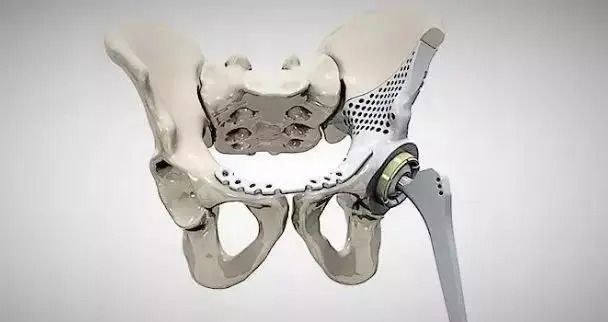

Stems, metaphyseal sleeves, and modular cones made from implant grade titanium provide tensile strength around 860 MPa (Ti-6Al-4V ELI) with an elastic modulus ~105–115 GPa. This modulus is closer to cortical bone (~18–25 GPa) than cobalt-chrome (~210 GPa), reducing stress shielding and bone resorption near the implant.

Fatigue endurance: polished and shot-peened titanium hip stems routinely meet or exceed 10^7 cycles in ISO 7206 tests; knee components with titanium baseplates demonstrate lower backside fretting compared to stainless.

· Corrosion and wear

In simulated body fluid (SBF) and Hank’s solution, titanium exhibits corrosion rates on the order of 10^−5 to 10^−6 mm/y. By contrast, stainless steel can undergo crevice corrosion in low-oxygen microenvironments, elevating metal ion levels.

Surface engineering—grit blasting, anodization, plasma-sprayed Ti or HA and porous-coating—enhances osteointegration. Roughness Ra 2–6 µm is common for press-fit titanium surfaces.

· Clinical impact

Registry trends show durable survivorship in cementless titanium stems and tibial trays. Lower imaging artifacts versus ferromagnetic alloys enable more accurate MRI/CT follow-up.

For shoulders and extremity joints, titanium base components coupled with polyethylene or ceramic counterfaces reduce galvanic couples and provide reliable fixation. Where ultrahigh strength is needed (e.g., smalldiameter stems), β-titanium alloys (e.g., Ti-15Mo, Ti-13Nb-13Zr) offer lower modulus (55–85 GPa) with good fatigue.

2. Internal fixation: plates, rods, and screws built on medical grade titanium

In trauma and deformity correction, titanium rods and titanium screws for surgery form the backbone of internal fixation systems:

· Intramedullary rods and spinal constructs

Titanium rods for spine (commonly 5.5–6.35 mm) pair with polyaxial pedicle screws to restore alignment and resist multi-axis loads. ASTM F1717 spinal construct testing often demonstrates endurance beyond 5 million cycles for well-designed titanium assemblies.

Lower artifact and superior compatibility with postoperative imaging facilitate assessment of fusion progression.

· Plates and screws

Locking compression plates (LCP) of Ti-6Al-4V ELI combine high specific strength with thread integrity in the plate holes. Titanium screws for surgery achieve reliable torque retention with minimized cold welding when coupled to Ti plates via surface finishes and lubricious sterile coatings.

Elastic modulus advantage reduces stress shielding in peri-implant bone. Clinical series report improved callus formation with titanium plates in comminuted fractures.

· Patient burden and recovery

The density of titanium (~4.43 g/cm³) is ~56% that of steel, lowering implant mass while maintaining strength. Reduced stiffness mismatch mitigates pain and enhances early mobilization.

3. Microsurgery and precision instruments: performance beyond the operating field

Titanium’s nonmagnetic nature, corrosion resistance in sterilants, and excellent strength-to-weight ratio make it a mainstay for fine instruments:

· Titanium folding scalpel and titanium scissors

Nonmagnetic behavior prevents instrument drift under MRI and reduces magnetic particle retention. High fatigue strength preserves edge alignment in delicate micro-dissections. Titanium scissors exhibit lighter hand feel, lowering surgeon fatigue during prolonged microsurgery.

· Forceps, needle holders, and micro-screwdrivers

Tailored surface textures improve grip without aggressive knurling that could harbor bioburden. Oxide colors from anodization assist tray identification without added coatings.

· Durability in sterilization

Resistance to autoclave cycling, peracetic acid, and alkaline detergents reduces pitting and joint loosening. In saline splash and blood exposure, titanium resists staining and maintains smooth articulation.

Rehabilitation frames and test rigs sometimes employ titanium heim joints in adjustable linkages. While not implanted, these components exploit titanium’s stiffness-to-weight benefits and corrosion resistance for clinic-grade durability around salt-based disinfectants.

4. Other medical devices: sutures, electrodes, and labware show the breadth of medical titanium

Titanium rods and wire feedstocks support a wide array of Titanium medical devices beyond implants:

· Cardiothoracic applications

Sternal closure systems using titanium wires or plates provide durable fixation with lower palpability. Vascular suturing needles made from titanium alloys combine high strength with excellent corrosion resistance, decreasing fracture risk during passage.

· Electrodes and sensors

Titanium and TiNcoated electrodes in ECG/EMG devices enhance signal stability and reduce polarization. For implantable stimulators, titanium housings provide hermetic sealing with low artifact in imaging.

· Laboratory and culture hardware

Titanium culture vessels and racks deliver chemically stable, autoclavable platforms that avoid trace metal leaching, improving reproducibility in cell culture and bioreactor studies.

These examples underscore the role of a capable titanium rod manufacturer who can supply implant grade titanium billets and bars with medicaldevice traceability (ISO 13485), heatlot documentation, and ultrasonic/eddycurrent inspection, enabling everything from rodbased implants to precision instruments.

Material data and standards: engineering numbers that matter

·  Chemistry and cleanliness

· Implant grade titanium: Ti-6Al-4V ELI (ASTM F136) with reduced oxygen and iron improves fracture toughness; CP Ti Grades 2–4 (ASTM F67) for lower-load applications and porous coatings.

·  Mechanical properties (typical)

· Ti-6Al-4V ELI: UTS ~860 MPa; YS ~795 MPa; elongation 10–14%; modulus ~110 GPa; fatigue endurance >10^7 cycles (specimen-level).

· CP Ti Grade 4: UTS 550–680 MPa; modulus ~105 GPa; high corrosion resistance.

·  Corrosion behavior

· In 0.9% NaCl at 37°C, open-circuit potentials are stable; breakdown potentials typically exceed +1.0 V vs Ag/AgCl. Uniform corrosion rates are effectively negligible; fretting and crevice risks are mitigated through design and surface control.

·  Imaging and compatibility

· MRI conditional compatibility with minimal artifacts relative to ferromagnetic alloys; CT streaking is lower, improving periprosthetic evaluation.

Cost, supply, and lifecycle: framing titanium implant cost

While titanium implant cost per unit mass is higher than stainless, the total cost of care often favors titanium due to:

· Lower revision rates linked to corrosion and allergic response.

· Better imaging follow-up reducing diagnostic uncertainty.

· Simplified inventory convergence when one material can serve diverse anatomies without galvanic concerns.

Vendors offering fully integrated titanium rods, plates, and titanium screws for surgery deliver economies of scale and consistent surface finishes that streamlines OR workflow and reduces variability.

Practical design notes for spinal and orthopedic systems

· Rod geometry and contouring

Titanium rods exhibit excellent formability; cold bending within recommended radii preserves fatigue

strength. For long constructs, consider variable-stiffness rods (β-Ti sections) to tune load sharing.

· Thread and interface engineering

Minimize galling by combining ELI titanium with surface treatments (anodization, TiN, DLC) or lubricious sterile coatings. Optimize thread flank angle and root radius to reduce peak contact stress.

· Surface and osteointegration

Grit-blasted and porous surfaces (15–40% porosity, 200–600 µm pore size) balance mechanical interlock with vascular ingrowth; HA or CaP layers can accelerate early stability

· Cross-compatibility and accessories

Ensure connectors, set screws, and rod-to-rod links are material-matched to avoid micro-galvanic cells. Use torque-limiting drivers with titanium scissors and instrument sets to reduce clamp over-tightening.

Extended ecosystem: from implants to instruments

· Titanium rods, plates, and cages form the core of implant systems.

· Titanium heim joints enhance adjustability in rehab rigs and mechanical test fixtures where non-corroding, light components are advantageous.

· Titanium folding scalpel and precision titanium scissors underscore how the same alloy family supports sterile, durable instruments with excellent tactile feedback.

Frequently Asked Questions and Answers

Q1: Can titanium implants cause cancer?
A1: Current clinical evidence does not show a causal link between medical titanium implants and cancer. Implant grade titanium exhibits excellent biocompatibility, extremely low ion release under physiological conditions, and a stable oxide surface. Regulatory approvals and decades of follow-up support its safety in oncologic and nononcologic populations.

Q2: Does cold weather affect titanium implants?
A2: No functional issues are expected. Titanium maintains toughness well below freezing, and body temperature keeps implants near 37°C. Patients typically do not feel temperature-related discomfort from titanium; seasonal ambient cold does not degrade implant performance.

Q3: Are titanium implants safe?
A3: Yes. Medical grade titanium and implant grade titanium alloys are among the most widely used and studied implant materials. They offer high fatigue strength, corrosion resistance in bodily fluids, excellent osteointegration, and MRI/CT compatibility. Allergic reactions are rare compared to nickel-containing alloys, contributing to strong safety records across spinal and orthopedic applications.
