Titanium wire drawing is a Plastic processing route that converts a Plate or Line blank into precision wire by pulling it through calibrated Die holes for wire drawing dies under controlled Pulling force. This deformation pathway refines grain size, enhances strength-to-weight, and achieves tight dimensional tolerances (±0.01–0.03 mm typical) and smooth finishes (Ra 0.2–0.6 μm). Drawn titanium and Titanium nickel alloy wire power critical sectors: fastener and spring production, high-reliability Medical devices, and Skull fixation systems where biocompatibility and fatigue life are paramount. Process chains often include multi-pass reductions of 60–90% area, inter-pass anneals at 500–750°C, and lubricant systems tailored to reactivity. Inline monitoring tracks force, temperature, and diameter, targeting <1% ovality and <5% lot-to-lot variability. Optimized die geometry (entry angle 8–12°, bearing length 0.5–1.0× diameter) limits surface damage and die wear, while surface preparation of the starting Plate or Line blank—pickling, coating, and drying—ensures defect-free flow. Final properties can reach tensile strengths of 900–1,200 MPa for CP–Ti wire and >1,400 MPa for Ti-6Al-4V, with superelastic Titanium nickel alloy wire tuned for 4–8% recoverable strain. The result is reliable, clean, and precise wire for demanding assemblies.
1. Fixed-die drawing: the cornerstone for precision titanium wire
Fixed-die drawing remains the dominant method for producing dimensionally accurate metallic wire, including fine titanium wire for high-specification uses in medical, aerospace, and electronics. In ultra-fine wire production, single-crystal natural diamond dies are widely used because they provide superior surface finish, excellent wear resistance, and stable bearing geometry.
· Material behavior and tribology
Titanium is notoriously hard to process. The metal exhibits high deformation resistance and relatively low room-temperature ductility; even more critical is its tendency toward adhesive wear (galling) against die materials. During drawing, intense contact stresses and interfacial temperatures promote adhesion and material transfer, which can score the die, roughen the wire surface, and destabilize pulling force.
· Surface conditioning before drawing
To achieve a clean, lubricious interface, pre-drawing surface treatments are essential to form a lubricant carrier layer that anchors drawing soaps or polymer films:
o Light oxidation anneal: A controlled, slight surface oxidation followed by removal/conditioning can promote better coating adhesion while reducing chemically active sites.
o Fluorophosphate treatment: Produces a conversion layer that enhances lubricant pick-up and moderates titanium reactivity.
o Metallic interlayers: Thin copper, chromium, nickel, or tin coatings can act as sacrificial, low-shear films to reduce galling in initial passes.
In practice, a common route for titanium wire is a mild oxidation anneal, coating application (e.g., phosphate–soap or polymer), and thorough drying to create a consistent, adherent lubricant reservoir.
· Die technology and pass strategy
Fixed dies rely on precisely defined entry angles, reduction zones, and bearing lengths. For titanium, entry half-angles of roughly 8–12 degrees and bearing lengths of 0.5–1.0 times the wire diameter are often used to balance deformation uniformity, heat generation, and friction. Multi-pass schedules distribute total area reductions (often 60–90% cumulative) while inter-pass annealing at 500–750°C restores ductility and refines grain structure.
· Quality outcomes
When surface prep and lubrication are effective, fixed-die drawing can routinely achieve roundness within 1%, diameter tolerances of ±0.01–0.03 mm, and surfaces as smooth as Ra 0.2–0.6 μm. These properties are crucial for medical skull fixation screws and miniature fastener wires where fatigue performance, torque stability, and consistent thread-forming behavior are mandatory.
2. Roller-die drawing: minimizing friction via rolling contact
Roller-die drawing substitutes the sliding friction that dominates fixed dies with primarily rolling friction, using free-rotating rollers that create a shaped pass. The major benefit is a marked reduction in drawing friction and the associated pulling force, which in turn lowers interfacial temperature and mitigates adhesion.
· Advantages
o Lower frictional losses and reduced heat generation help curb galling and die wear.
o Potentially higher drawing speeds for roughing passes, improving throughput on upstream operations feeding precision finishing lines.
· Limitations
o Dimensional accuracy and surface finish generally trail those of fixed-die drawing because the roller pass cannot maintain the same rigid, uniform bearing control.
o Best suited to rough drawing or pre-shaping stages where the goal is to approach final size economically, followed by precision finishing in fixed dies.
· Practical use
For titanium, roller-die drawing can be deployed in early reductions to reduce the burden on fixed dies, thereby extending die life and stabilizing later passes where tight tolerances are required for medical devices, aerospace fasteners, and high-frequency conductors in Satellite antennas.
3. Die-less drawing: localized heating and tensile thinning
Die-less drawing employs localized heating—via induction coils or lasers—to soften a short zone of the wire. By applying controlled tension, the softened section elongates and reduces in diameter without a traditional die, and without conventional lubricants.
· Strengths
o Eliminates die contact, removing die adhesion issues entirely.
o Enables large deformation ratios per pass and potentially high process efficiency, which can be attractive for specific diameter transitions or prototyping.
· Trade-offs
o Size uniformity is challenging; thermal gradients and dynamic material flow can cause variation in diameter along the length.
o Mechanical properties may vary if thermal cycles are not tightly controlled; microstructural gradients can appear across the wire cross-section.
Surface quality depends on oxidation control during heating; inert or reducing atmospheres are often necessary, especially for titanium.
· Applications
o While promising for rapid down-sizing or special profiles, die-less drawing typically serves niche needs or intermediate steps, with subsequent finishing in fixed dies to achieve the uniformity demanded by skull fixation, spring, and fastener applications.
4. Pressure-assisted (hydrostatic) die drawing: forced lubrication to combat galling
In pressure-assisted drawing, a booster nozzle upstream of the die elevates lubricant pressure, forcing lubricant into the converging zone and bearing land. For titanium—where boundary lubrication breakdown triggers adhesion—this forced-lubrication regime is a powerful countermeasure.
· Benefits
o Breakthrough reductions in wire breaks (reported up to 4/5 reduction).
o Dramatic increases in die life (often 20× or more) due to robust hydrodynamic films that prevent metal-to-die welding.
o Noticeable improvement in surface finish and dimensional stability as friction becomes more predictable.
· Implementation notes
o Requires careful selection of lubricant chemistry (e.g., phosphate–soap systems, polymer or glass lubricants for high-temperature passes) and tight control of pressure, temperature, and flow.
o Die and nozzle alignment is critical to avoid eccentric loading, which can otherwise negate gains in surface quality and roundness.
5. Coated-wire bundle drawing: efficient bulk reduction with removable jackets
Coated-drawing methods first electroplate or otherwise clad titanium wire with a softer metal—commonly low-carbon steel—before consolidating a bundle of coated wires inside a low-carbon steel tube. The bundle is then drawn collectively, with intermediate anneals as required. After achieving the final size, the steel sheath and plating are removed, often by sulfuric acid pickling, to reveal the finished titanium wires.
· Advantages
o High productivity: simultaneous reduction of many filaments increases throughput and reduces per-unit cost.
o Protection: the soft sheath distributes contact stresses, reducing the risk of surface damage and adhesion on the titanium core during heavy reductions.
o Cost-effective route for mass production where ultra-high finish is not required until final stages.
· Considerations
o Electroplating and sheath removal introduce chemical processing steps that must be tightly controlled for cleanliness and environmental compliance, particularly relevant to electroplating facilities with wastewater in the water treatment industries.
o After stripping, final finishing passes (cleaning, light drawing or polishing) are typically needed to meet precision requirements for medical or aerospace use.
6. Four-roll continuous wire rolling: high-throughput deformation without dies
A four-roll wire mill arranges four rolls to form a circular pass. One powered roll drives three idler rolls, delivering symmetric deformation and improved roundness compared to two-roll mills. Multiple stands can be linked into a continuous line for titanium alloy wire, dramatically increasing productivity and yield.
· Why it works for titanium
o Distributed contact and controlled bite angles reduce localized heating and the likelihood of adhesion.
o Continuous operation supports consistent microstructural refinement when integrated with in-line or inter-stand annealing.
· Position in the process chain
o Ideal for preform and intermediate reductions, feeding either fixed-die finishing or roller-die calibration passes.
o Especially attractive for large-volume supply chains, such as spring and fastener wire for industrial equipment, structural elements for Satellite antennas, or corrosion-resistant wire for racks and fixtures in electroplating plants and components exposed in water treatment industries.
Cross-cutting controls: from pulling force to die holes for wire drawing dies
Regardless of the route, several controls determine whether titanium wire drawing meets the strictest specifications:
· Pulling force and speed
Real-time monitoring of pulling force reveals lubricant breakdown and die wear; closed-loop speed control avoids thermal spikes.
For ultra-fine wire, lower speeds and smaller per-pass reductions reduce heat and preserve surface integrity.
· Die geometry and finish
Entry angle, reduction cone length, and bearing length must be tuned to titanium’s flow stress. Diamond or cBN tools with mirror-polished die holes for wire drawing dies minimize friction and micro-scratching.
Frequent inspection with optical or tactile profilometry ensures the die land remains concentric and undamaged.
· Lubrication and atmosphere
Phosphate–soap, polymer, or solid-lubricant systems (e.g., MoS2 in controlled environments) reduce shear stresses and galling.
In critical passes or high-temperature stages, inert atmospheres prevent surface oxidation that would otherwise raise friction and compromise downstream coating or bonding.
· Surface cleanliness and conversion layers
Conversion treatments (fluorophosphate) and controlled oxide films act as lubricant carriers. Consistent pickling, rinsing, and drying protocols prevent inclusions that seed adhesion or surface tearing.
Heat treatment
Inter-pass annealing schedules restore ductility and minimize residual stresses. Precise temperature control avoids grain coarsening, preserving fatigue resistance for springs, medical devices, and aerospace fasteners.
· Metrology and defect control
Inline laser micrometers and eddy-current systems track diameter, ovality, and surface defects. For medical and aerospace channels, statistical process control targets ±0.01 mm tolerance bands and <1% ovality with Cp/Cpk thresholds that meet regulatory expectations.
Application notes: fastener, spring, medical, and antenna-grade wire
· Fastener wire
High fatigue life, controlled surface roughness, and consistent work hardening ensure stable thread formation and torque retention. Post-draw aging or stress-relief may be specified for Ti-6Al-4V.
· Spring wire
Demands high tensile strength and resilience. Multistage drawing with carefully timed anneals balances strength and ductility; surface integrity is critical to delay crack initiation under cyclic loads.

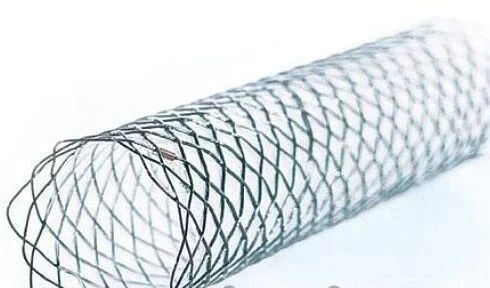

· Medical devices and skull fixation
Biocompatibility and traceability are non-negotiable. Ultra-clean processing, passivation, and fine finishing deliver smooth surfaces that minimize tissue irritation. Tolerances and mechanical properties must conform to standards for implant-grade materials; for skull fixation, consistent ductility prevents brittle behavior during forming.
· Satellite antennas and RF structures
Lightweight, corrosion-resistant wire supports deployable structures and precision components. Thermal stability and tight dimensional control reduce drift in alignment and resonance characteristics.
· Electroplating and water treatment industries
Titanium’s corrosion resistance under electrolytic conditions makes it ideal for racks, hooks, and grids in plating lines, and for exposure in chlorinated or saline water treatment environments. Drawing routes that safeguard the native oxide and maintain smooth surfaces extend service life in these chemically aggressive settings.
Process integration for Titanium nickel alloy wire
Titanium nickel alloy wire (NiTi) introduces superelasticity and shape memory, requiring tailored drawing schedules:
· Lower per-pass reductions and more frequent intermediate anneals prevent crack formation and retain transformation characteristics.
· Die temperatures and speeds are controlled to limit R-phase stabilization and to preserve Af/Ms targets. Final property tuning may include precise thermal aging and straightening protocols.
Safety, sustainability, and compliance
· SafetyControl dust and fines during pre-treatment and polishing; prevent hydrogen pickup during pickling by using inhibitors and strict time–temperature limits.
· Sustainability
Recycle lubricants and capture rinse waters, integrating with on-site wastewater treatment—especially critical for electroplating operations and water treatment industries.
· Compliance
Traceability of heat lots, die maintenance records, and process parameters is essential for medical and aerospace audits.
Frequently Asked Questions and Answers
Q1: What key process parameters (e.g., drawing speed, die geometry, lubrication type) are critical in the titanium wire drawing process to achieve tight diameter tolerances (e.g., ±0.01 mm) for medical or aerospace applications?
A1: Tight tolerances rely on stable friction and heat control. Use optimized die geometry (entry half-angle 8–12°, bearing length 0.5–1.0× diameter) with mirror-polished diamond dies, maintain modest drawing speeds to avoid thermal spikes, and deploy robust lubrication (phosphate–soap or polymer systems, optionally pressure-assisted). Inline laser gauging with feedback to pulling force and speed, combined with frequent die inspection and calibrated inter-pass anneals, keeps ovality under 1% and tolerances within ±0.01 mm.
Q2: How does the titanium wire drawing process need to be adjusted when producing ultra-fine titanium wire (≤1 mm diameter) compared to standard wire (≥1.5 mm), particularly in terms of die sequence and intermediate annealing steps?
A2: For ultra-fine wire, reduce per-pass area reduction, lower drawing speed, and shorten the die bearing length slightly to limit heat and adhesion. Increase the number of passes and schedule more frequent, lower-temperature intermediate anneals to restore ductility without coarsening grains. Employ single-crystal diamond dies with superior polish, tighter run-out control on capstans, and stricter cleanliness to avoid inclusion-driven breaks.
Q3: What challenges arise in the titanium wire drawing process due to titanium’s low thermal conductivity and high reactivity, and how are these addressed to prevent surface oxidation or die adhesion during drawing?
A3: Low thermal conductivity concentrates heat at the interface, while high reactivity promotes oxidation and die adhesion. Countermeasures include: minimizing sliding friction via roller-die or pressure-assisted lubrication; using conversion layers and high-performance lubricants to sustain hydrodynamic films; moderating speed and reduction per pass; and drawing in inert or controlled atmospheres for critical stages. Polished diamond dies and precise surface preparation further suppress adhesion, while inter-pass anneals with careful pickling and passivation restore a clean, low-reactivity surface for subsequent passes.
