I. Product Name: Titanium Disc
Grades: Gr1, Gr2, Gr3, Gr5, Gr9, Gr12, Gr23 (Gr5 ELI)
Standards: ASTM B348, ASTM B381, ASTM B367, AMS4928
Specifications: Outer diameter 6-13mm, maximum length 4m; outer diameter 13-120mm, maximum length 15m; wall thickness 0.3-12mm
Applications: Primarily used in industries such as machinery, electronic equipment, electroplating equipment, aerospace, medical, and various precision parts.
2.Product Name: Titanium Alloy Forgings
Grades: GR1, GR2, GR3, GR4, GR5, GR7, GR11, GR12, GR23;
Standards: ASTM B348, ASTM B381, AMS4928
Specifications: Outer diameter φ (200~400) * Inner diameter φ (100~300) * Height (20~120) Outer diameter (400~700) * Inner diameter φ (150~500) * Height (40~250) Outer diameter (700~1500) * Inner diameter φ (300~1200) * Height (40~600)
Production Process: Forging, die forging, rotary forging, precision forging, welding. Inspection: Tensile strength testing, hardness testing, chemical composition testing, ultrasonic testing, radiographic testing, penetrant dyeing testing. Surface Treatment: Machining, chamfering. Surface Quality: The surface roughness Ra value of the two end faces should not exceed 3.2 μm (to meet ultrasonic testing requirements), and the surface roughness Ra of the inner and outer surfaces should not exceed 12.5 μm (Ra should not exceed 3.2 μm when ultrasonic testing is required on the outer circumference). The chamfer radius is 5~15 mm.
Application areas: Titanium forgings are widely used in aerospace, aviation, military, light industry, chemical, textile, medical and petrochemical fields.
Standard value
Chemical composition standards | |||||||||
Brand | AI | V | N≤ | C≤ | H≤ | Fe≤ | O≤ | Other elements (single) | Other elements (sum) |
GR1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 0.1 | 0.4 | ||
GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.1 | 0.4 | ||
GR5 | 5.5-6.75 | 3.5-4.5 | 0.05 | 0.08 | 0.015 | 0.3 | 0.2 | 0.1 | 0.4 |

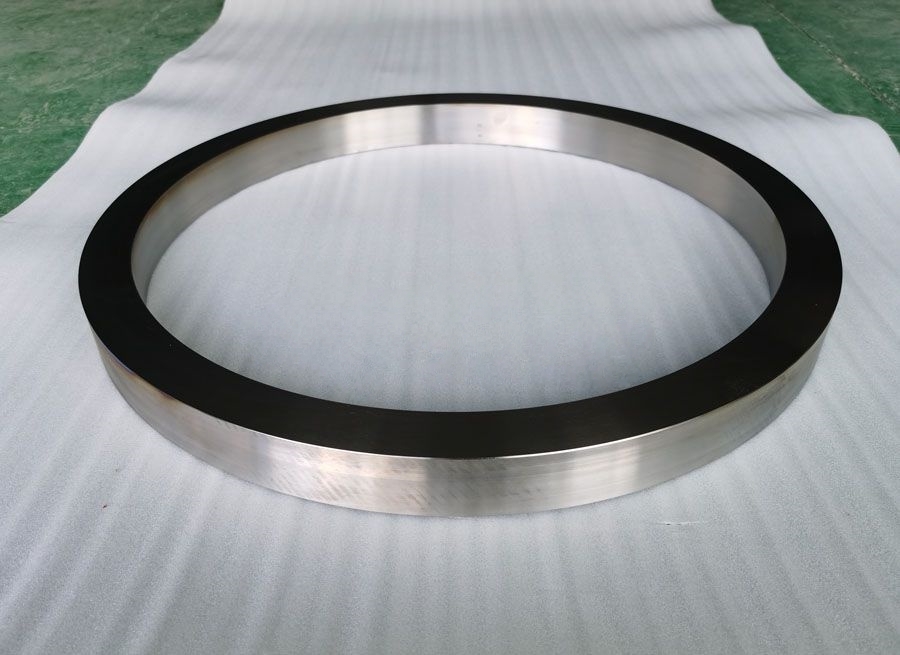

3. Product Name: Titanium Alloy Ring
Standards: ASTM B348, ASTM B367, ASTM B381, ASTM F67, ASTM F136.
Grades: GR1, GR2, GR3, GR4, GR5, GR6, GR7, GR12, GR23
Supply conditions: hot-worked, cold-worked, annealed, hot-forged
Types: Wool rings, polished rings, machined rings
4. Product Name: Titanium bar
GR1, GR2, GR3, GR5 titanium rods in stock specifications:
Diameter:1mm 1.5mm 2mm 2.5mm 3.0mm 3.5mm 4.0mm 5.0mm 6.0mm 7.0mm 8mm 9mm 10mm
Diameters: 12mm, 15mm, 16mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm
Diameter:60mm 65mm 70mm 75mm 80mm 85mm 90mm 100mm 105mm 110mm 120mm
Titanium rod characteristics:
Resistant to acid and alkali corrosion, seawater corrosion, and sewage corrosion;
It has a low density (4.51) and is lightweight.
Non-magnetic
When used between -253° and 600°, its tensile strength is almost the highest among metals.
Applications: In industry, besides using pure titanium to manufacture parts, titanium alloys are widely used. It is increasingly widely used in aerospace, chemical, shipbuilding, metallurgy, electronics, medical, petroleum, pharmaceutical, and military industries, and is also used in the manufacture of gas turbine components.
