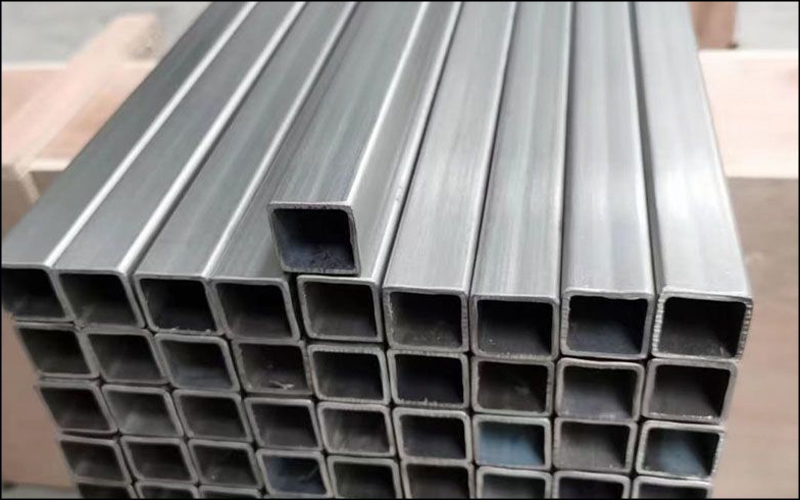

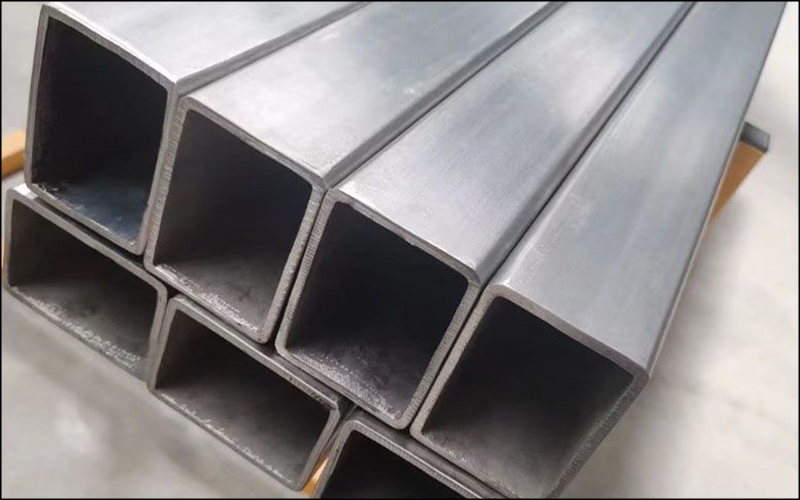

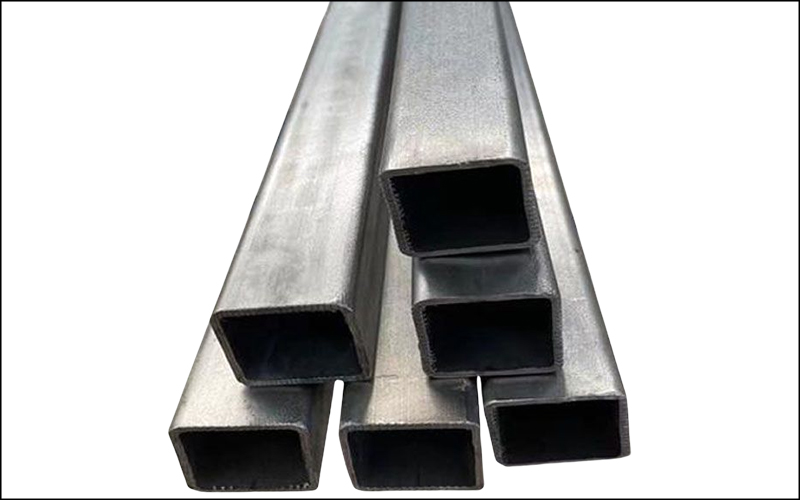

Titanium Square Tube

Material properties and classification

Titanium capillaries are made from high-precision industrial-pure titanium and ultrafine-grained titanium alloys. They feature low density (4.51 g/cm³), excellent corrosion resistance (to chloride, acidic and alkaline media), high specific strength, and good biocompatibility.

Common industrial-pure titanium grades include GR1 and GR2, with titanium contents >99.6% and oxygen contents ≤0.2%. They exhibit excellent plasticity (elongation ≥25%) and are suitable for thin-wall precision molding. TA9 (Ti-0.2Pd) offers improved corrosion resistance to reducing acids such as sulfuric acid and hydrochloric acid.

Titanium alloys include Ti-6Al-4V for high-strength applications (tensile strength ≥895 MPa), and Ti-5Al-2.5Sn for ultra-low-temperature environments of -253°C. Vacuum melting is required to control impurity levels (Fe ≤ 0.3%, N ≤ 0.05%)

Production method

Seamless titanium square tube production process

1. Billet Preparation:

Smelting and Ingot Casting: Titanium sponge is melted two to three times in a vacuum consumable arc furnace (VAR) to produce homogeneous ingots 300-600 mm in diameter. Impurity elements are controlled (Fe ≤ 0.3%, N ≤ 0.05%).

Billing and Rolling: Forging into 150-200 mm round billets, hot rolling into 80-120 mm rough tubes, with a deformation of 20%-30% per pass at a temperature of 850-950°C (below the β-transformation point).

2. Precision Forming:

Cold Drawing/Cold Rolling to Square: Multiple cold drawing passes are used, gradually transitioning to a square shape (corner radius R ≥ 2 times the wall thickness) through a circular die. Single-pass deformation is ≤ 15% to avoid cracking. Alternatively, roll forming is used, using multiple sets of profiled rollers to continuously roll the round tube into a square tube, with a dimensional accuracy of ±0.1 mm. Online Annealing: Vacuum annealing (500-700°C, hold for 1-2 hours) is performed after every 2-3 deformation passes to eliminate work hardening and restore plasticity.

3. Finishing and Testing:

Cutting to Length: Laser or plasma cutting, length tolerance ±5mm;

Surface Treatment: Pickling (HF+HNO₃ solution) to remove oxide scale, electrolytic polishing to a surface finish of Ra ≤ 1.6μm;

Non-destructive Testing: Ultrasonic testing (to detect internal defects) and hydrostatic testing (1.5 times the working pressure, hold for 30 seconds, no leakage).

Titanium Square Tube Manufacturers and Suppliers

Titaudou is a professional manufacturer and supplier of Titanium Square Tube ，Titanium products available in a wide variety of custom sizes, grades, and specifications。We supply products that meet the standards of ASTM B348, ASTM B381, ASTM B337, ASTM B338,We supply Titanium Square Tube, etc. In addition, we can also customize Titanium Square Tube according to customer requirements. We also supply titanium round bars, titanium plates, titanium wires, titanium forgings, titanium processed parts and other titanium products
