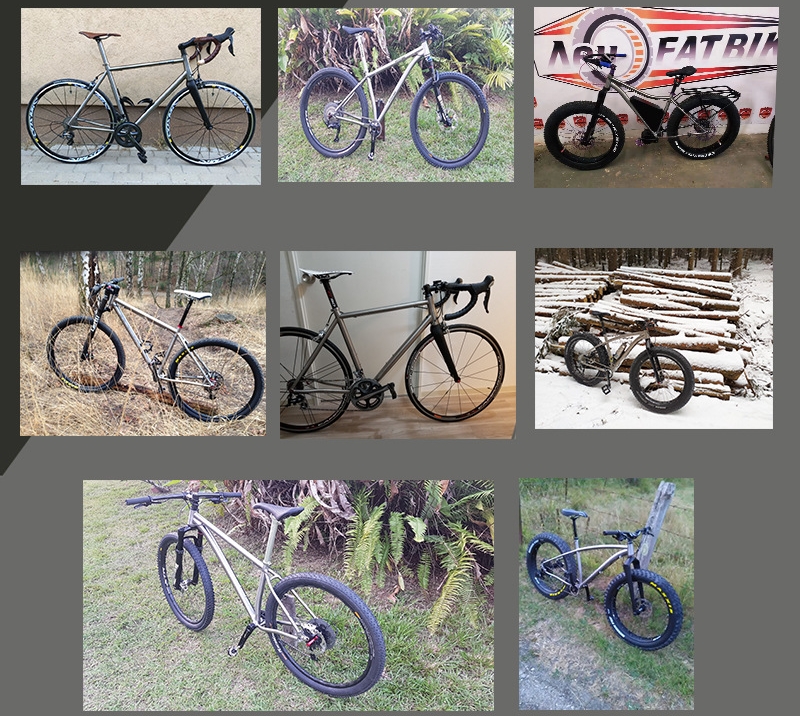

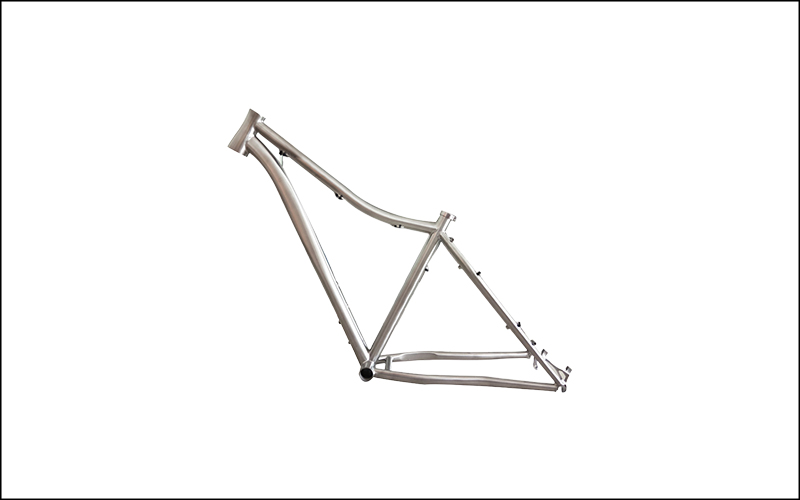

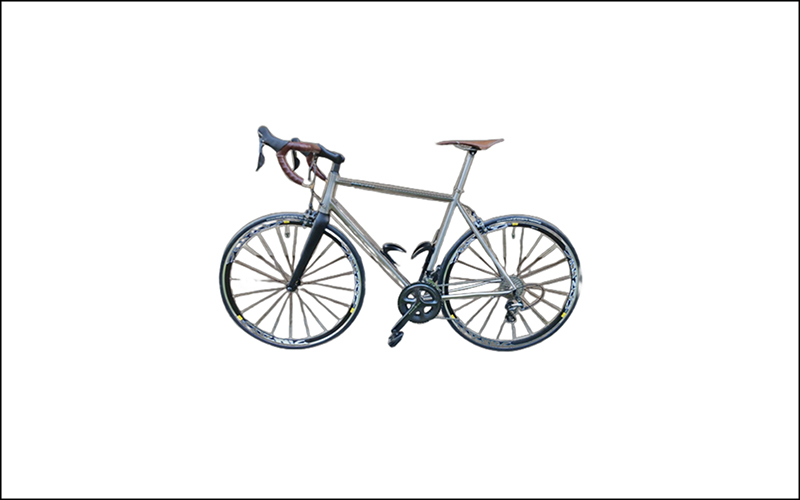

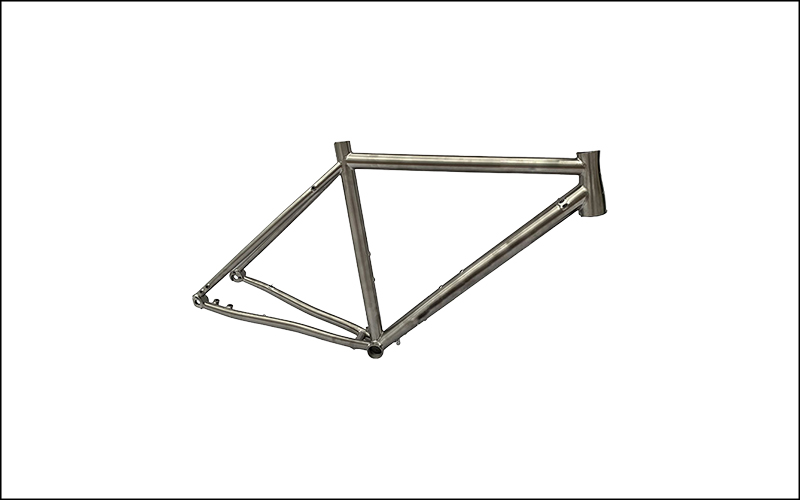

Titanium bike frame
Core material performance
Utilizing GR9 titanium alloy (Ti-3Al-2.5V), a near-alpha titanium alloy, this material achieves optimized performance through a precise ratio of aluminum (3wt%) and vanadium (2.5wt%).
Mechanical Properties: Tensile strength of 600-680 MPa, yield strength ≥515 MPa, elongation ≥15%, and room-temperature strength 20%-50% higher than commercially pure titanium. It combines high strength with impact resistance, resisting fracture even under severe impact.
Lightweight Advantage: With a density of only 4.47 g/cm³, the 1.5 kg frame is 43% lighter than a steel frame of the same strength and over 15% more rigid than an aluminum alloy frame, reducing unsprung mass and exerting less energy during riding.
Fatigue Resistance and Durability: The α+β dual-phase structure provides excellent fatigue resistance, with a fatigue limit of 70% of the yield strength and a service life of up to 20 years (approximately 2 years for an aluminum frame and approximately 8 years for a steel frame), making it suitable for long-distance riding and harsh road conditions. Corrosion resistance: The surface naturally forms an oxidized passivation film, which has no risk of rusting in rain, sweat and marine environments. No paint protection is required, and the metal texture can be presented only through surface treatment.
| Titanium alloy bicycle frame product parameters | |
| Product Name | Titanium alloy bicycle frame |
| Material | titanium alloys GR9 Ti-3Al-2.5V |
| Specifications: | Seat tube diameter is optional from 27.2mm to 31.8mm, compatible with most seatpost specifications, supports quick release or clamp type fixation, and is suitable for long-distance riding comfort adjustment The frame weight is precisely controlled at 1.5kg (±0.3kg), and sizes cover 14"-22" (corresponding to heights of 150-190cm). The balance of rigidity and lightness is achieved by optimizing the tube diameter (such as oval tubes/tapered tubes). |
| Minimum order quantity | 10pcs |
| length | Size Customization: Frame geometry (such as seat tube length and top tube angle) can be adjusted based on rider height and arm length. Compatible with 26", 27.5", and 29" wheel sizes. -Logo Customization: Customize the head tube or seat tube via laser engraving or etching. Quality Standards: Conforms to ASTM B338 titanium alloy tubing standards, with welded joints exceeding 90% of the parent material strength, passed 5,000 hours of salt spray testing, and backed by a 5-year warranty. |
| Surface treatment | Finish: Hand-brushed or mirror-polished, the silvery-white metallic luster highlights the delicate texture of titanium, perfect for those seeking a minimalist style. Sandblasted matte finish (Ra 1.6μm) enhances slip resistance and abrasion resistance, reduces fingerprint residue during riding, and is suitable for challenging outdoor environments. Vacuum coating (PVD): Available in gold (TiN) or blue-black (TiCN) coatings, with a thickness of 5-8μm and a hardness of HV1000+, it enhances surface wear resistance and allows for personalized color matching. |
Titanium Bike Frame Manufacturer and Supplier
Titaudou is a professional titanium manufacturer and supplier, offering a wide range of custom sizes, grades, and specifications. We provide products that conform to standards such as ASTM B348, ASTM B381, ASTM B337, and ASTM B338. We also offer custom products based on customer specifications. We also offer titanium rods, plates, wire, forgings, machined parts, and other titanium products
