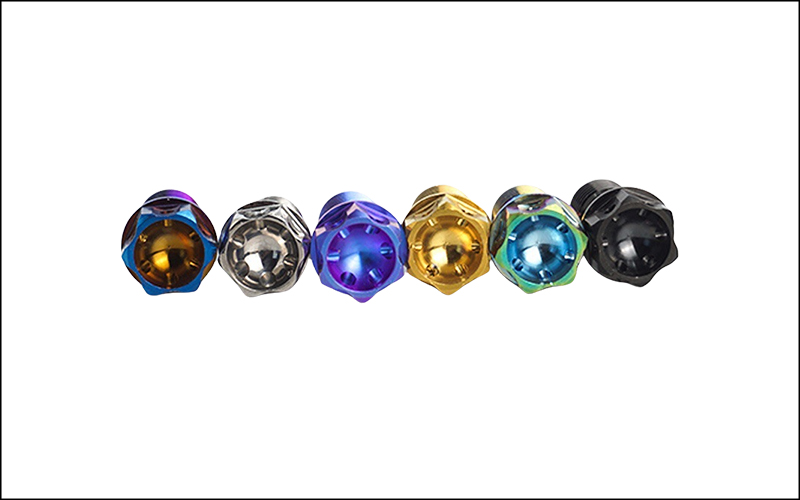

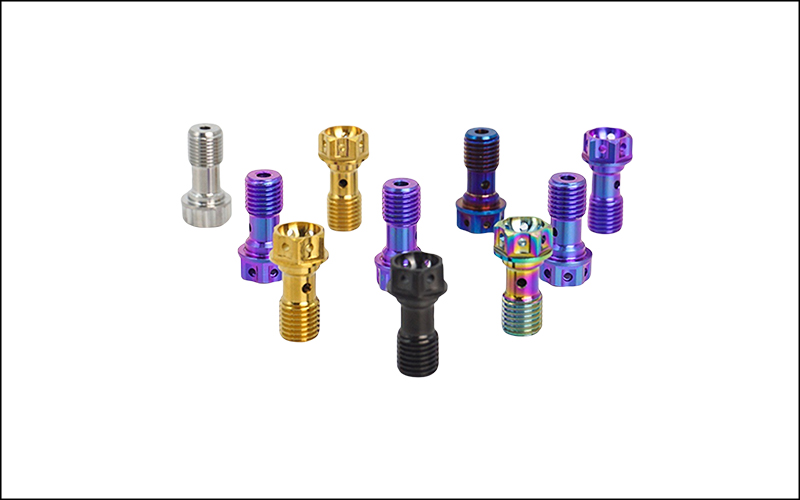

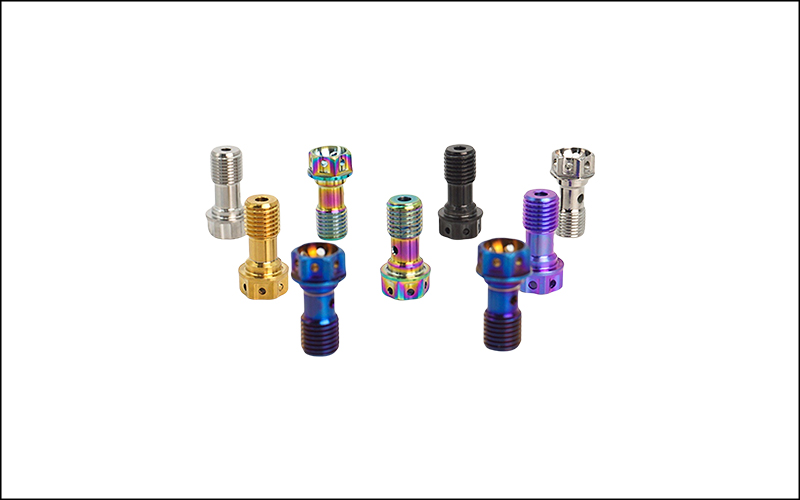

Titanium oil bolt
Core material performance
Machined from forged GR5 titanium alloy (Ti-6Al-4V), these screws possess mechanical properties suited to the rigorous operating conditions of motorcycle engines:
Strength: Tensile strength ≥895 MPa, yield strength ≥825 MPa, and elongation at break ≥10%, ensuring the threads remain free of plastic deformation during frequent assembly and disassembly.
Corrosion Resistance: A 5-10μm oxide film is formed on the surface through pickling and passivation. The corrosion rate is less than 0.005mm/year in engine oil and high-temperature water vapor environments, eliminating the rust and seizure issues associated with traditional steel screws.
Lightweight Advantage: With a density of only 4.51g/cm³, these screws are 43% lighter than comparable stainless steel screws (density 7.9g/cm³), reducing unsprung engine mass and improving handling response.
| Titanium oil bolt product parameters | |
| Product Name | Titanium oil bolt |
| Material | titanium alloys |
| Specifications: | M10×1.0 (fine): 1.0mm pitch, 60° thread angle, effective thread length ≥15mm. Suitable for Japanese motorcycles (such as some Yamaha and Honda models). Compatible with a 14mm hexagonal wrench (width across flats). M10×1.25 (coarse): 1.25mm pitch, 9.188mm pitch diameter, 8.376mm minor diameter. Suitable for European motorcycles (such as BMW and Ducati). The head flange has a 16mm diameter and an integrated sealing gasket groove (2mm width, 0.5mm depth). |
| Brand | ASTM B348 Grade 5、AMS 4928 |
| Standards | DIN |
| Minimum order quantity | 100pcs |
| length | Customizable |
| Surface treatment | ISO 10289 salt spray test certification |
Titanium fasteners Manufacturers and Suppliers
Titaudou is a professional manufacturer and supplier of titanium bolt ，Titanium products available in a wide variety of custom sizes, grades, and specifications。We supply products that meet the standards of DIN titanium bolt,We supply titanium bolt, etc. In addition, we can also customize titanium bolt according to customer requirements.
