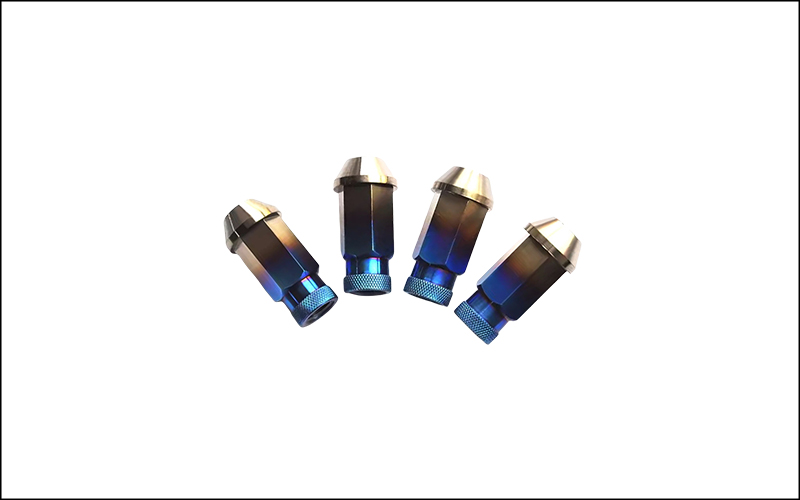

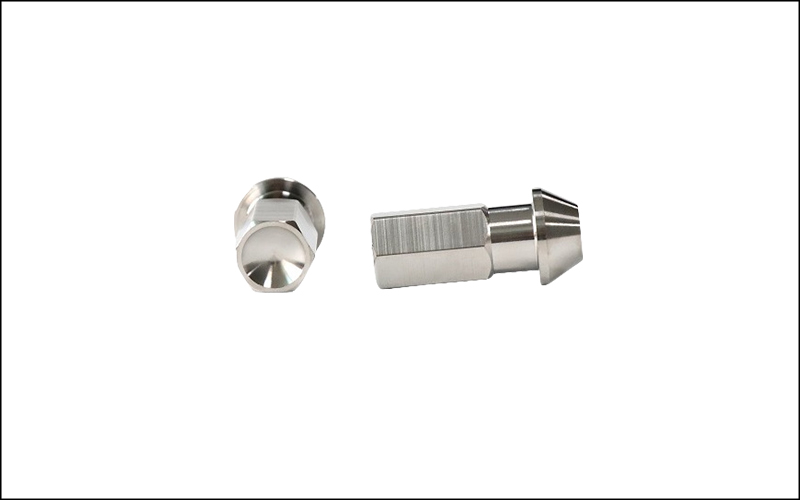

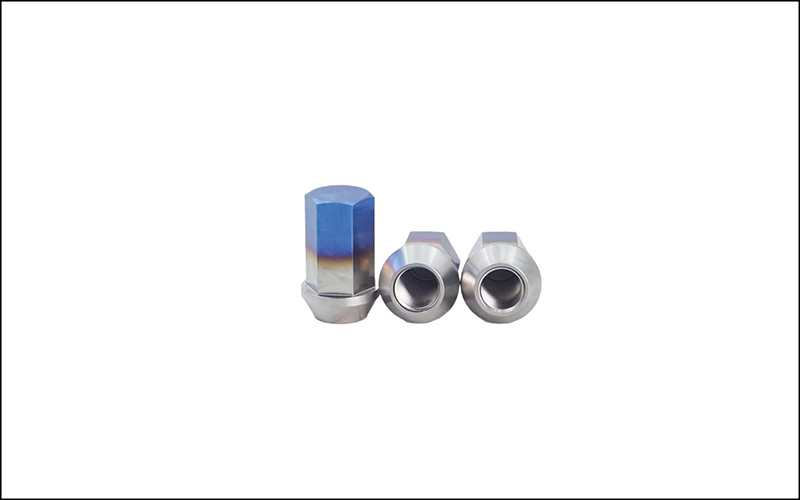

Titanium Lug Nuts
Material Core Features
Using titanium alloy GR5 (Ti-6Al-4V) as the base material, it has the ultimate adaptability to motorcycle/automobile wheel hub fastening scenarios:
Mechanical Properties: Tensile strength ≥ 895 MPa, yield strength ≥ 825 MPa, elongation at break ≥ 10%, no risk of plastic deformation when the thread is stressed; hardness reaches HRC 30-35, with superior impact resistance compared to traditional steel nuts.
Lightweight Advantage: Density is only 4.51 g/cm³, 43% lighter than a stainless steel nut of the same specification (density 7.9 g/cm³), reducing the unsprung mass of the wheel hub and improving vehicle acceleration and braking response.
Corrosion Resistance: The surface is pickled and passivated to form a 5-10 μm oxide film. In corrosive environments such as rain, salt spray, and brake fluid, the annual corrosion rate is less than 0.005 mm, eliminating the problem of rust and seizure in traditional nuts, making them difficult to remove.
| Titanium automotive bolts product parameters | |
| Product Name | Titanium automotive bolts |
| Material | titanium alloys GR5 |
| Specifications: | Thread specifications: M12×1.25 (coarse), thread diameter: 12mm, pitch: 1.25mm, thread angle: 60°, effective thread length: ≥25mm, conforming to ISO metric standards, ensuring at least 90% engagement depth with the wheel hub bolts. Overall dimensions: 35mm in length (L35), with a 17mm hexagonal head (compatible with standard socket wrenches), an 8mm inner diameter and 2mm wall thickness at the closed end to prevent sand and dirt from entering the thread gap. Sealing structure: The flange surface features an integrated 1.5mm wide sealing groove, compatible with copper or nitrile rubber washers. When tightened to a torque of 45-50 N·m, it provides a positive seal, preventing wheel hub bearing grease leakage. |
| Brand | Conforms to ASTM B348 Grade 5 material standards and ISO 898-1 mechanical performance specifications, and has passed 100,000 vibration fatigue tests (frequency 20~2000Hz) without failure. |
| Standards | DIN |
| Minimum order quantity | 100pcs |
| length | Customizable |
| Surface treatment | Supports natural anodizing (film thickness 5~8μm, silvery white), colored anodizing (blue/purple/gold, film thickness 8~15μm) or PVD coating (TiN/TiCN, hardness HV1000+), salt spray resistance test > 5000 hours |
Automobile bolts Manufacturers and Suppliers
Titaudou is a professional manufacturer and supplier of Titanium alloy automobile bolts，Titanium products available in a wide variety of custom sizes, grades, and specifications。We supply products that meet the standards of ASTM B348, ASTM B381, ASTM B337, ASTM B338 Titanium alloy automobile bolts,We supply Titanium alloy automobile bolt , etc. In addition, we can also customize according to customer requirements. We also supply titanium round bars, titanium plates, titanium wires, titanium forgings, titanium processed parts and other titanium products.
