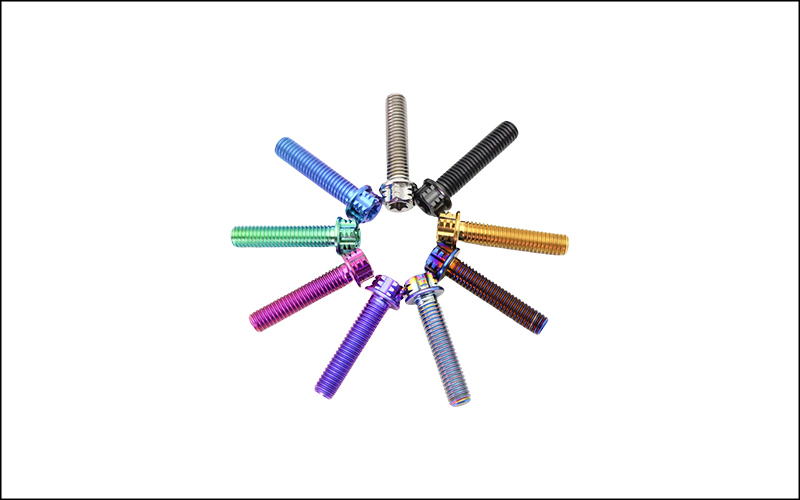

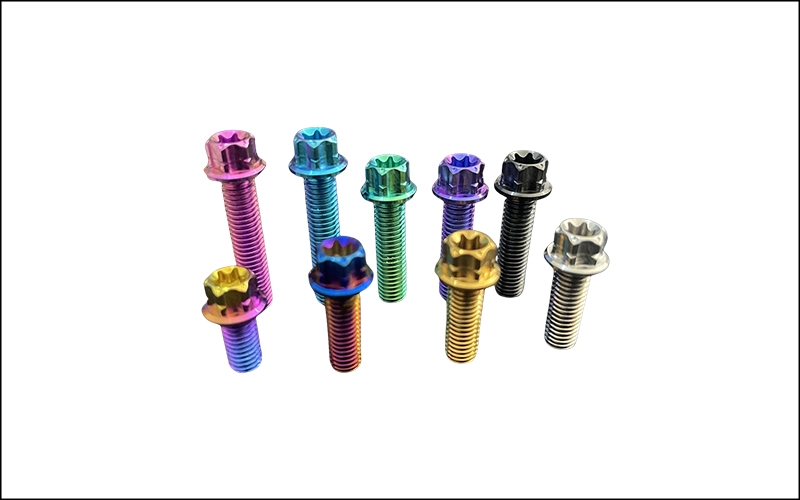

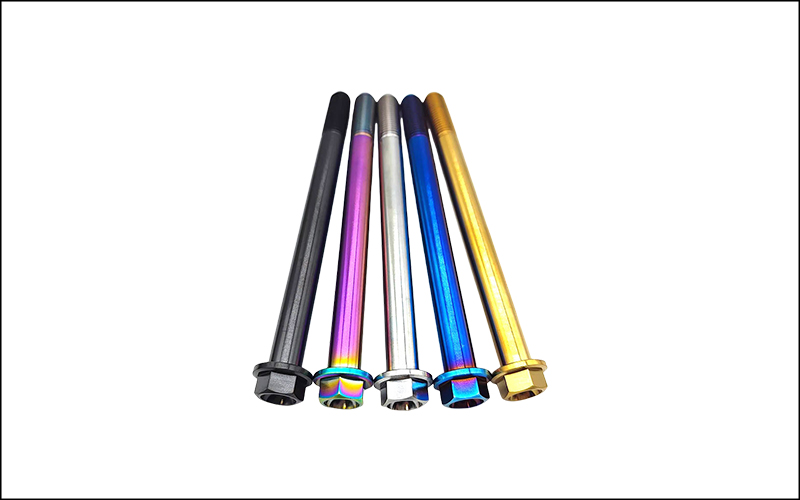

Titanium Bolts

Core Purpose

Titanium bolts are widely used in the following fields due to their low density (4.51g/cm³), high specific strength (strength/density is 1.4 times that of stainless steel) and corrosion resistance (corrosion rate <0.01mm/year):

1. Aerospace and High-end Manufacturing

Spacecraft/Aircraft: For structural fasteners, such as fuselage frames and engine casing connections, TC4 alloy bolts (compliant with HB 6568) are used. They meet wide operating temperatures of -196°C to 600°C and high strength requirements of 1100 MPa.

Precision Instruments: For medical equipment (artificial joint components) and optical instruments (telescope mounts), GR2 pure titanium bolts are selected. Their biocompatibility complies with ISO 10993.

2. Chemical Industry and Corrosive Environments

Chlor-alkali/Acid Cleaning Industry: For flange connections in electrolytic cells and reactors, GR2 bolts are resistant to chloride ion and nitric acid corrosion, and can replace stainless steel to avoid intergranular corrosion.

Marine Engineering: For desalination equipment and offshore platform piping, titanium bolts are resistant to seawater erosion and, with PTFE coating for sealing, are suitable for deep-sea pressure conditions up to 3,000 meters. 3. Civilian and Specialty Applications

Transportation Equipment: Motorcycle and bicycle frame fastening (GR5 bolts, DIN 912 standard), 30% weight reduction and improved salt spray resistance (5000 hours of rust-free);Electronics and New Energy: Hydrogen fuel cell bipolar plate connections, TA1 pure titanium bolts with conductivity >10⁴ S/m and thickness tolerance ±0.05mm.

DIN bolt standards include:

DIN 933 - Hexagon head bolts, fully threaded

DIN 931 - Hexagon head bolts, partially threaded

DIN 912 - Hexagon socket head cap screws

DIN 7985 - Cross recessed pan head screws

DIN 7991 - Hexagon socket countersunk head screws

DIN 603 - Cup head square neck bolts (carriage bolts)

DIN 558 - T-head bolts for T-slots

DIN 1445 - Hexagon head wood screws

DIN 444 - Wing bolts (butterfly bolts)

DIN 613 - Foundation bolts (anchor bolts)

DIN 7982 - Hexagon socket cheese head screws (cylinder head)

DIN 7984 - Hexagon socket button head screws

DIN 84 - Slotted pan head screws

DIN 81 - Slotted countersunk head screws

DIN 835 - Stud bolts with square neck

DIN 836 - Stud bolts with collar

DIN 261 - Hexagon head bolts for high pressure

DIN 262 - Hexagon head bolts with large head

DIN 571 - Wood screws with hexagon head

DIN 608 - Round head square neck bolts

Titanium fasteners Manufacturers and Suppliers

Titaudou is a professional manufacturer and supplier of titanium bolt ，Titanium products available in a wide variety of custom sizes, grades, and specifications。We supply products that meet the standards of DIN  titanium bolt,We supply titanium bolt, etc. In addition, we can also customize titanium bolt according to customer requirements.
